Screw and Bolt Forming Dies

GXP Click here

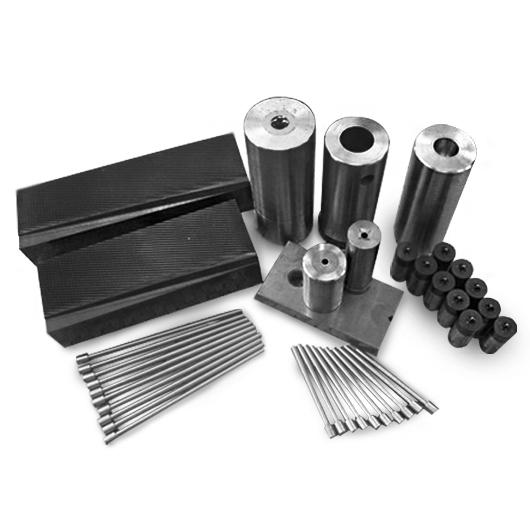

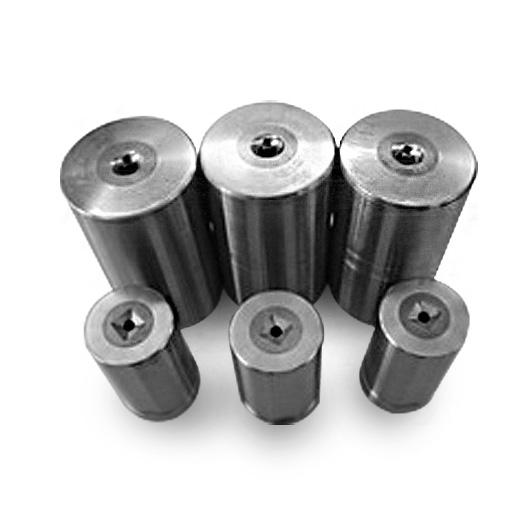

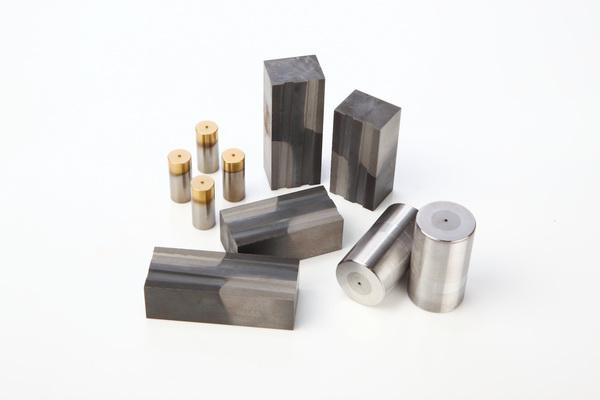

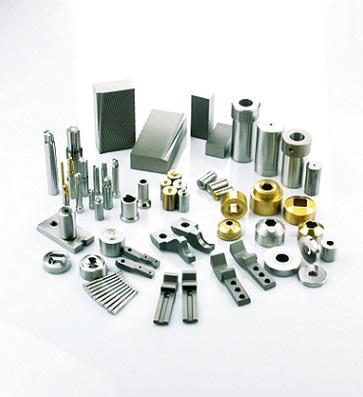

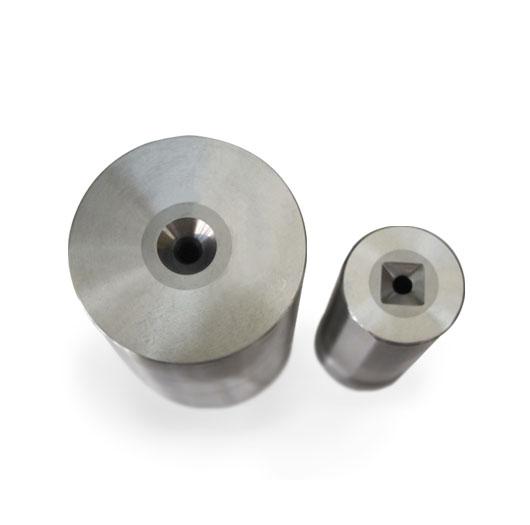

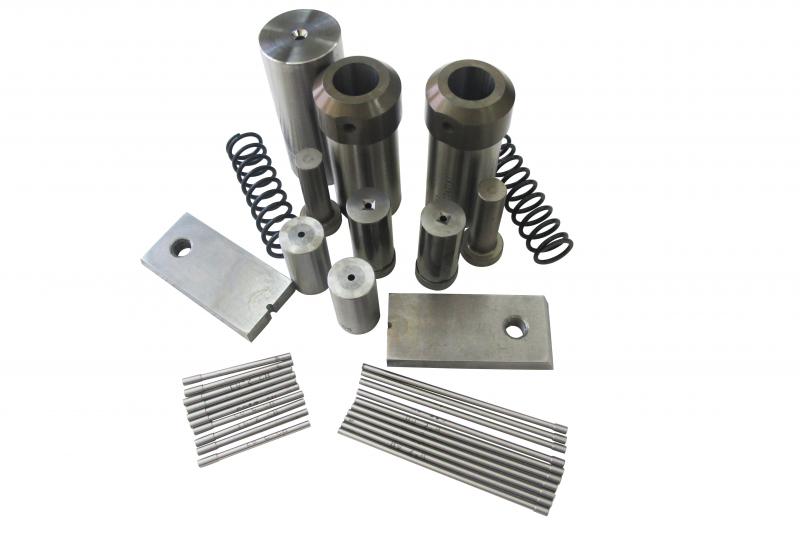

Screw and bolt forming dies are precision tools used in cold heading and cold forming machines. Working together with punches, they guide metal flow to produce fastener heads, shanks, shoulders, and stepped profiles.

Screw and Bolt Forming Dies

Proper die design and material selection help maintain consistent dimensions, reduce wear, and support stable production.

Main Functions

  • Shape fastener blanks: Form the required profiles through heading and extrusion.
  • Control metal flow: Guide material during each forming stage.
  • Support dimensional accuracy: Maintain consistent shank diameters and related features.
  • Support repeatable production: Provide reliable performance when matched to the forming process.

Materials and Construction

Material Features and Applications
Tungsten Carbide High wear resistance and compressive strength for die inserts and working cavities.
Tool Steel A balance of toughness and wear resistance for selected solid dies and forming components.
Alloy Steel Structural support for die cases and carbide insert assemblies.

Material selection depends on the wire material, part geometry, forming load, and production requirements.

Custom Die Options

Common configurations include straight-bore dies, heading dies, extrusion dies, stepped-bore dies, and carbide-inserted dies. Each design should match the fastener drawing, machine dimensions, and forming sequence.

FAQ

What are screw and bolt forming dies used for?

They shape metal blanks into screw, bolt, and other fastener profiles during cold heading and cold forming.

Why use tungsten carbide inserts?

Tungsten carbide offers high wear resistance and compressive strength. The appropriate grade must also provide sufficient toughness for the application.

Do forming dies produce screw threads?

External threads are typically produced in a separate operation using thread rolling dies.

What information is required for a custom die quotation?

Please provide the part drawing, die dimensions, machine model, wire material, wire diameter, and required quantity.

Request a Custom Die Quote

Send your drawings or samples with your machine and wire specifications for tooling evaluation and a customized quotation.
