Former Transfer Fingers & Grippers

GXP Click here

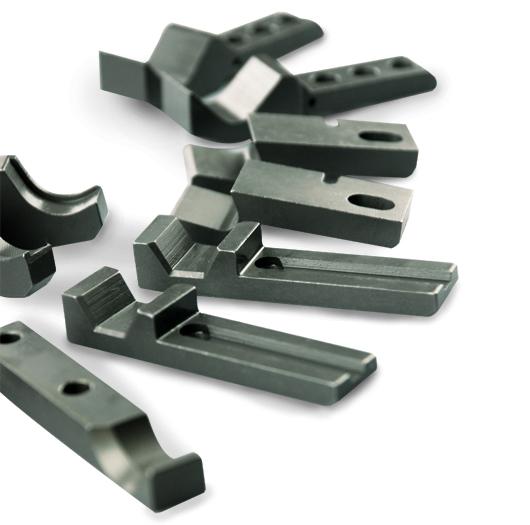

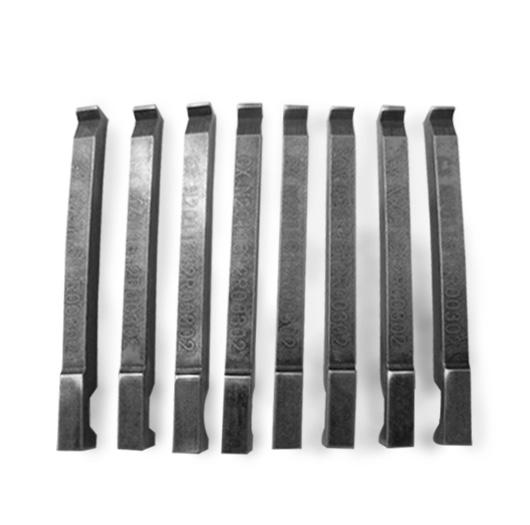

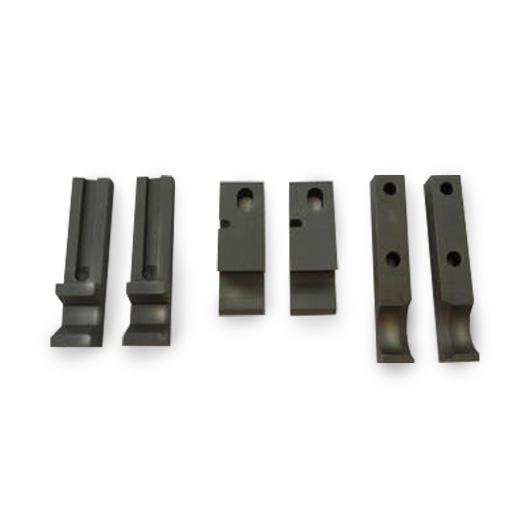

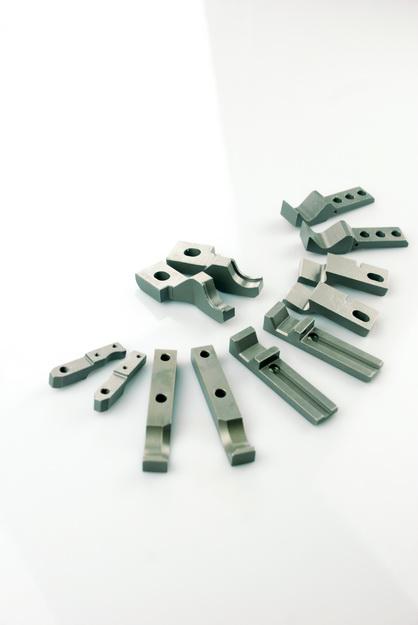

GXP supplies transfer fingers and grippers for bolt formers, nut formers and custom forming applications. These components hold and transfer workpieces between forming stations, supporting correct positioning during production.

Available options include bolt former transfer fingers, nut former clamps, nut former transfer fingers and custom designs.

Former Transfer Fingers & Grippers

Former transfer fingers and grippers are workpiece-handling components installed in a forming machine’s transfer system. They grip the blank or partially formed part, move it to the next station and release it in sequence with the machine cycle.

Main functions:

  • Hold workpieces securely during transfer.

  • Move parts between forming stations.

  • Maintain the required workpiece position and orientation.

  • Release parts for the next forming operation.

Gripping profiles and mounting dimensions must match the workpiece and machine transfer mechanism.

Material and Specifications

Item Specification
Material S45C; custom material requirements subject to review
Product types Bolt former transfer fingers, nut former clamps and transfer fingers
Dimensions According to machine requirements and customer drawings
Gripping profile Matched to the workpiece shape and gripping position
Minimum order quantity 10 pcs
Lead time 20 working days, subject to order confirmation
Packaging Standard export packaging

Specify any required hardness, heat treatment, surface finish or coating on the drawing for quotation review.

Ordering Information

Please provide the following details when requesting a quotation:

  1. Machine brand and model, including the forming station.

  2. Finger or gripper drawing, showing dimensions, tolerances and mounting details.

  3. Workpiece drawing, including the shape and dimensions at the transfer stage.

  4. Material and hardness requirements, if specified.

  5. Order quantity, identifying individual pieces or matched pairs.

  6. Required delivery date and any current transfer problems.

For replacement parts, include the original part number and photos or a sample when available. Detailed drawings are recommended for custom designs.

Frequently Asked Questions

What are former transfer fingers used for?
They hold and move workpieces between stations in a multi-station forming machine.

Are transfer fingers and grippers the same?
The terms may overlap. “Transfer finger” generally refers to the workpiece-contacting component, while “gripper” may refer to the gripping component or assembly. Confirm the required scope with a drawing or part number.

What types are available?
Options include bolt former transfer fingers, nut former clamps, nut former transfer fingers and custom designs.

What material is used?
The listed material is S45C. Custom material requirements can be reviewed according to the drawing and operating conditions.

Can custom dimensions and gripping profiles be supplied?
Custom designs can be reviewed using detailed drawings, mounting dimensions and workpiece information.

Can the same transfer finger fit different machines?
Compatibility must be checked. Mounting dimensions, gripping geometry and transfer movement can vary by machine and station.

What are the MOQ and lead time?
The listed MOQ is 10 pcs, with a lead time of 20 working days. Final delivery depends on the confirmed specifications and order details.

What information is needed for a replacement quotation?
Provide the machine model, part number, drawing, workpiece details and quantity. Photos or an existing sample can help clarify the requirements.

Request a Quotation

Send your transfer finger or gripper drawing, machine model and required quantity to GXP for specification review and quotation.
