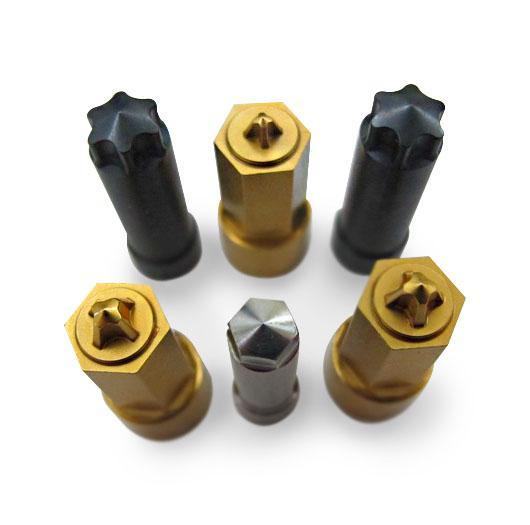

Recess Pin Punch, Screw Punch Pin

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision recess pin punches and screw punch pins for screw head and drive recess forming.

These pins are used in cold heading tools to form accurate screw recess profiles, including Phillips, Pozidriv, Hexagon, Square, Six-Lobe and custom designs.

JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.

Standard and customized pins are available according to screw specifications, tooling requirements and customer drawings.

Recess Pin Punch & Screw Punch Pin for Screw Head Forming

What is a Recess Pin Punch / Screw Punch Pin?

A recess pin punch is a precision forming tool used to create the drive recess in a screw head during cold heading.

Main Functions:

  • Forms accurate screw drive recess profiles.

  • Maintains consistent recess dimensions.

  • Supports stable screw head production.

  • Fits different header punch assemblies.

  • Allows customized designs for special screws.

Materials & Surface Treatment

Material selection depends on screw material, recess geometry and production conditions.

Item

Available Options

Carbon Steel

M2 / SKH-9

Stainless Steel

M42 / SKH-59

Surface Treatment

Plain, TiN, TiAlN or as specified

Custom Design

Available according to drawings

Final material and coating recommendations are subject to JD's technical review.

Recess Types & Applications

Recess Type

Application

Phillips (+)

General machine screws

Pozidriv (PZ)

Cross-recess screws

Hexagon Socket

Socket drive screws

Square

Square drive screws

Six-Lobe / Torx Type

Six-lobe drive screws

Combination Recess

Combination drive screws

Custom Profile

Special screw designs

Recess dimensions and geometry can be reviewed according to ISO, JIS, ANSI, DIN or customer drawings.

Ordering Information

Please provide the following information when requesting a quotation:

  1. Screw Standard: ISO, JIS, ANSI, DIN or customer drawing.

  2. Screw Size: Diameter, length and head type.

  3. Recess Type: Phillips, Hexagon, Six-Lobe or other profile.

  4. Pin Dimensions: Diameter, length and required tolerances.

  5. Material & Coating: Required tool steel and surface treatment.

  6. Quantity: Estimated order quantity.

  7. Drawing or Sample: Recommended for custom designs.

Custom dimensions and special specifications are available for technical review.

Manufactured by JD in Taiwan | Sales & Quotations by GXP

Frequently Asked Questions

What is a Recess Pin Punch?

A recess pin punch is a precision tool used to form the drive recess in a screw head during cold heading.

What is the difference between a Recess Pin Punch and a Header Punch?

A recess pin punch forms the drive recess and may be installed in a two-piece header punch assembly. A header punch is the complete forming tool used to shape the screw head and recess.

Who manufactures JD Recess Pin Punches?

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

What materials are available?

Common options include M2 (SKH-9) and M42 (SKH-59) high-speed steel. Material selection depends on the screw material and forming conditions.

What recess profiles are available?

Phillips, Pozidriv, Hexagon, Square, Slotted, Six-Lobe, combination and customized profiles.

Are custom Recess Pin Punches available?

Yes. JD can review custom designs based on customer drawings, samples and production requirements.

Are coated punches available?

Plain, TiN and TiAlN options can be reviewed according to the application and JD's available specifications.

What information is required for a quotation?

Please provide the screw drawing, recess type, pin dimensions, screw material, coating requirements and order quantity.

Request a Quote – JD Recess Pin Punches

Looking for precision recess pin punches for screw manufacturing?

GXP supplies JD-made recess pin punches from Taiwan, including standard and custom designs.

Send us your screw drawing, recess specifications and required quantity for technical review and quotation.
