6 Lobe Tamper-Proof Pin Punch T10
GXP Click here
Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision 6 Lobe Tamper-Proof Pin Punches T10 for security screw manufacturing.
These punches are designed to form six-lobe drive recesses with a central security pin feature, requiring compatible tamper-resistant screwdrivers for installation and removal.
JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.
Standard and customized designs can be reviewed according to screw specifications, tooling requirements and customer drawings.
6 Lobe Tamper-Proof Pin Punch T10 for Security Screw Forming
What is a 6 Lobe Tamper-Proof Pin Punch T10?

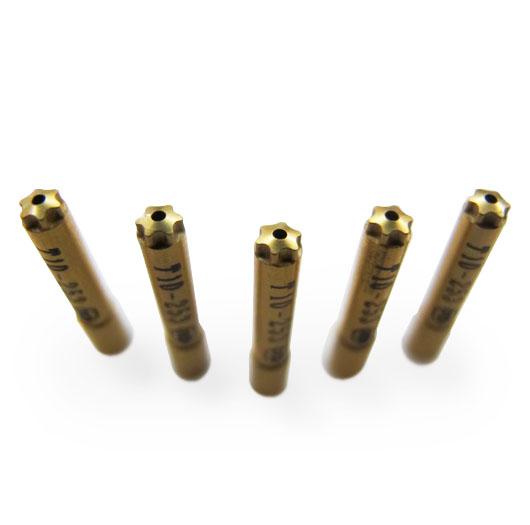

A 6 Lobe Tamper-Proof Pin Punch T10 is a precision forming tool used to create a T10 six-lobe security recess with a central raised pin in the screw head during cold heading.
The punch features the corresponding forming geometry to produce the security recess and its central pin.
Main Functions:
-
Forms precise T10 six-lobe security recess profiles.
-
Creates the central security pin feature.
-
Maintains consistent recess dimensions and depth.
-
Supports stable security screw production.
-
Fits compatible header punch assemblies.
Materials & Surface Treatment
Material selection depends on screw material, recess geometry and production conditions.
|
Item |
Available Options |
|---|---|
|
Carbon Steel |
M2 / SKH-9 |
|
Stainless Steel |
M42 / SKH-59 |
|
Surface Treatment |
Plain, TiN or TiAlN, subject to confirmation |
|
Custom Design |
According to customer drawings |
Final material and coating specifications are subject to JD's technical review.
Applications & Specifications
|
Item |
Description |
|---|---|
|
Application |
Tamper-resistant security screw manufacturing |
|
Drive Profile |
Six-Lobe Tamper-Proof |
|
Recess Size |
T10 |
|
Security Feature |
Central raised pin |
|
Production Process |
Cold heading |
|
Compatible Tooling |
Header punch assemblies |
|
Screw Standards |
Customer drawings or applicable standards |
|
Dimensions |
According to screw and punch specifications |
|
Customization |
Available upon technical review |
Ordering Information
Please provide the following information when requesting a quotation:
-
Screw Size: Diameter, length and head type.
-
Recess Type: T10 Six-Lobe Tamper-Proof.
-
Security Feature: Central pin dimensions and tolerances.
-
Pin Punch Dimensions: Diameter, overall length and required tolerances.
-
Material & Coating: Required tool steel and surface treatment.
-
Header Punch Assembly: Applicable punch case or assembly dimensions.
-
Order Quantity: Required quantity for quotation.
Customer drawings or physical samples are recommended to confirm security recess geometry and tooling compatibility.
Frequently Asked Questions
What is a 6 Lobe Tamper-Proof Pin Punch T10?
It is a precision forming tool used to produce T10 six-lobe security recesses with a central raised pin in screw heads.
What is the function of this pin punch?
It forms the six-lobe recess and central security feature, helping maintain consistent recess dimensions during screw production.
Who manufactures these pin punches?
JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.
What materials are available?
M2 (SKH-9) and M42 (SKH-59) high-speed steel options can be reviewed according to screw material and production requirements.
What is the difference between a standard T10 and a Tamper-Proof T10 recess?
A standard T10 recess has a six-lobe profile. A Tamper-Proof T10 recess includes a central raised pin that requires a compatible security driver with a center hole.
Are custom dimensions available?
Yes. Custom pin dimensions, recess depth and central security pin geometry can be reviewed based on customer drawings or samples.
Are surface coatings available?
Plain, TiN and TiAlN options can be reviewed according to production requirements and JD's technical confirmation.
What information is required for ordering?
Please provide screw dimensions, T10 security recess specifications, punch dimensions, material requirements, tooling details and order quantity.
Request a Quote – JD 6 Lobe Tamper-Proof Pin Punch T10
Looking for precision T10 tamper-proof pin punches for security screw manufacturing?
GXP supplies JD-manufactured recess pin punches from Taiwan, including standard and custom designs for cold heading applications.
Send us your drawings, recess specifications, pin punch dimensions and required quantity for technical review and quotation.
