GXP supplies precision forging pins and extrusion forging pins for screw, bolt and fastener manufacturing.
These pins are used to form holes, cavities and special profiles during cold heading, forging and extrusion processes.
Available in M2, M42, H-9 and SKH-59, with optional surface coatings.
Custom sizes and designs are available according to customer drawings and production requirements.
Forging Pins & Extrusion Forging Pins

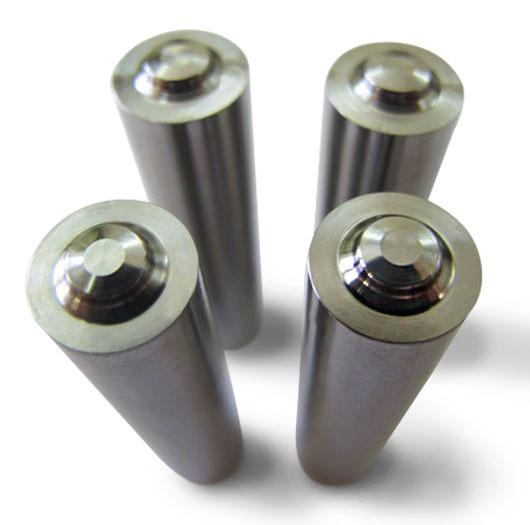

Forging Pins
Forging pins are precision tooling components used to shape metal parts under high pressure during cold forging.
They help form holes, recesses and special profiles in screws, bolts and other fasteners.

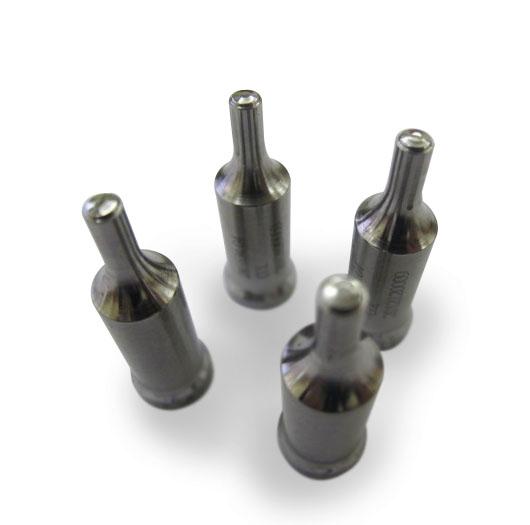

Extrusion Forging Pins
Extrusion forging pins are designed for cold extrusion processes. They control metal flow to form internal cavities, holes and specific geometries in metal components.
Main Functions
-
Form internal holes, cavities and special profiles.
-
Support cold heading, forging and extrusion operations.
-
Maintain dimensional accuracy during repeated forming cycles.
-
Provide wear resistance under demanding forming conditions.
-
Support consistent production of screws, bolts and precision fasteners.
Materials & Surface Treatments
Materials are selected according to forming pressure, workpiece material and production requirements.
|
Material |
Features & Applications |
|---|---|
|
M2 High-Speed Steel |
Balanced toughness and wear resistance for general cold forming applications |
|
M42 High-Speed Steel |
High hardness and wear resistance for demanding forming conditions |
|
H-9 Tool Steel |
Good toughness and resistance to thermal softening for suitable forging applications |
|
SKH-59 High-Speed Steel |
High hardness and wear resistance for precision forming tools |
Surface Treatments
-
Plain (Uncoated)
-

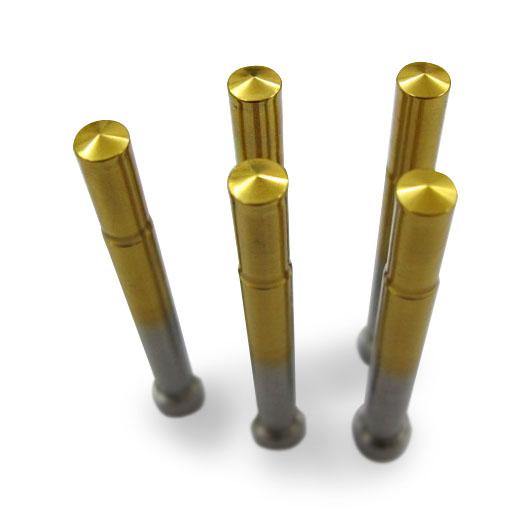

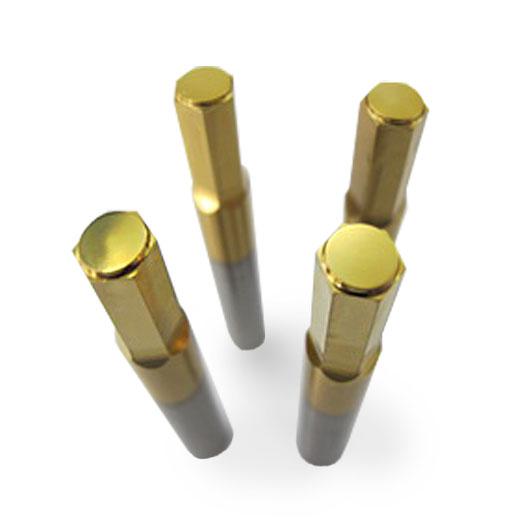

TiN Coating
-
TiAlN Coating
Material grades and coatings are selected according to application requirements.
Available Types & Customization
GXP supplies standard and customized forging pins for different forming applications.
Available Types
-
Forging Pins
-
Extrusion Forging Pins
-
Round Forging Pins
-
Piercing Pins
-

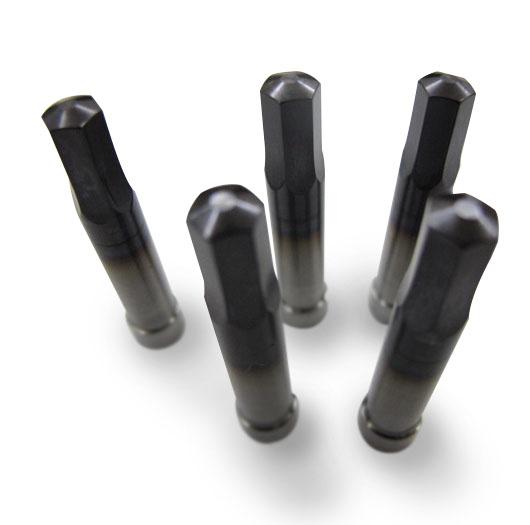

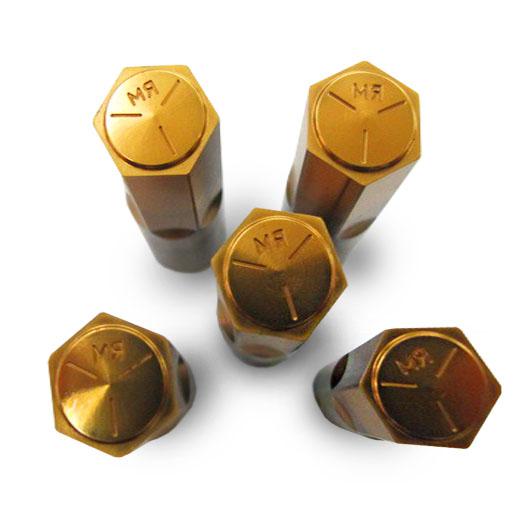

Special Profile Forging Pins
-
Customized Extrusion Pins
Customization Options
-
Pin diameter and overall length
-
Head, shank and tip dimensions
-
Extrusion and forming profiles
-
Material and surface coating
-
Dimensional tolerances and surface finish
-
Special designs according to customer drawings or samples
Custom specifications are subject to technical review.
Ordering Information
Please provide the following information for quotation:
-
Product Type: Forging Pin or Extrusion Forging Pin
-
Dimensions: Diameter, overall length, tip dimensions and tolerances
-
Material: M2, M42, H-9 or SKH-59
-
Surface Treatment: Plain, TiN or TiAlN
-
Machine Type: Cold heading or forging machine model
-
Application: Screw, bolt or other formed component
-
Drawings or Samples: Recommended for accurate quotation
-
Order Quantity: Required quantity
Frequently Asked Questions
What is a Forging Pin?
A Forging Pin is a precision tool used to form holes, recesses and special profiles in metal components during cold forging.
What is an Extrusion Forging Pin?
An Extrusion Forging Pin is used to form internal cavities and specific shapes by controlling metal flow during cold extrusion.
What is the difference between Forging Pins and Extrusion Forging Pins?
Forging Pins are used for general metal forming, while Extrusion Forging Pins are specifically designed for extrusion operations.
What materials are available?
Available materials include M2, M42, H-9 and SKH-59, depending on production requirements.
What surface treatments are available?
Plain, TiN and TiAlN coatings are available according to application requirements.
Can Forging Pins and Extrusion Forging Pins be customized?
Yes. Custom dimensions, forming profiles and tolerances are available according to customer drawings or samples.
Are these pins suitable for screw and bolt manufacturing?
Yes. They are used in cold heading, forging and extrusion processes for screws, bolts and other fasteners.
How do I select the correct pin material?
Material selection depends on forming pressure, workpiece material, pin geometry and required wear resistance.
What is the minimum order quantity?
The listed minimum order quantity is 50 pieces, subject to order confirmation.
What information is required for quotation?
Please provide dimensions, material, coating, machine type, application, quantity and drawings or samples.
Looking for Forging Pins or Extrusion Forging Pins?
GXP supplies precision forging pins for cold heading, forging and extrusion applications.
Send us your drawings, specifications or samples for technical review and quotation.
