Segmental Dies & Customized Segmental Dies

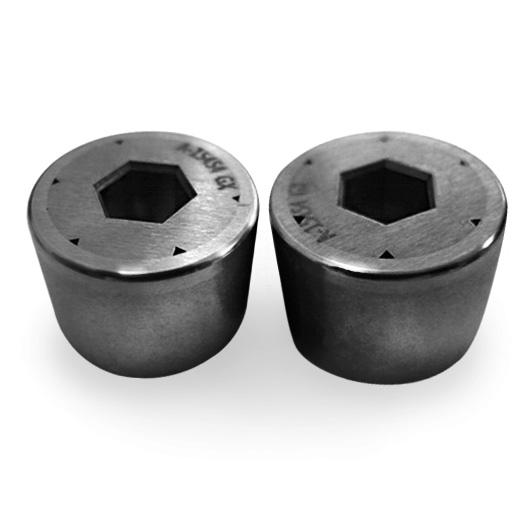

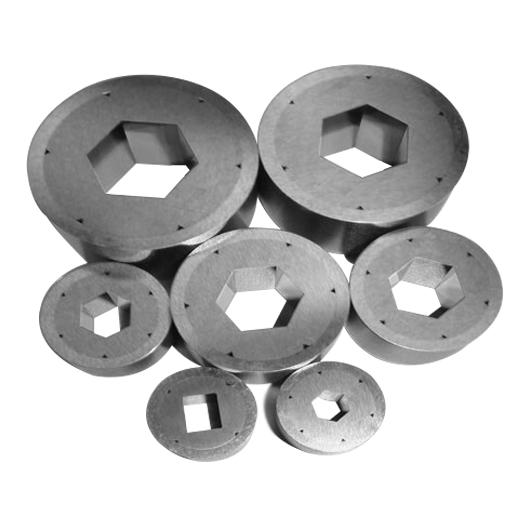

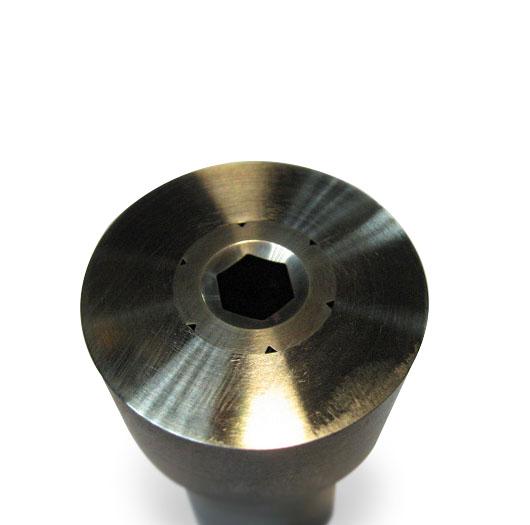

A segmental die, also called a segmented die, is a forming tool with a cavity made from multiple working pieces rather than a single insert.
Main functions:
-
Form square, hexagonal or special profiles.
-
Support the blank during cold forming.
-
Guide material flow under pressure.
-
Control critical part dimensions.
What Is a Customized Segmental Die?
A customized segmental die is made for a specific component or forming operation. Its cavity, segment arrangement and case dimensions follow the customer’s drawings.
Main functions:
-
Produce drawing-specific shapes.
-
Match the required forming sequence.
-
Fit the machine and tooling assembly.
-
Support consistent part geometry.
Materials and Construction
| Component | Typical Material | Function |
|---|---|---|
| Working segments | Cemented tungsten carbide, commonly with a cobalt binder | Provides wear resistance and compressive strength |
| Supporting case | Heat-treated alloy steel or tool steel | Holds and supports the segments |
The carbide grade is selected according to wire material, forming load and profile geometry. Accurate segment fit and suitable case support are essential for reliable performance.
Custom Options and Applications
Custom options include cavity profiles, segment arrangements, corner radii, forming depths and machine-specific case dimensions.
Typical applications:
-

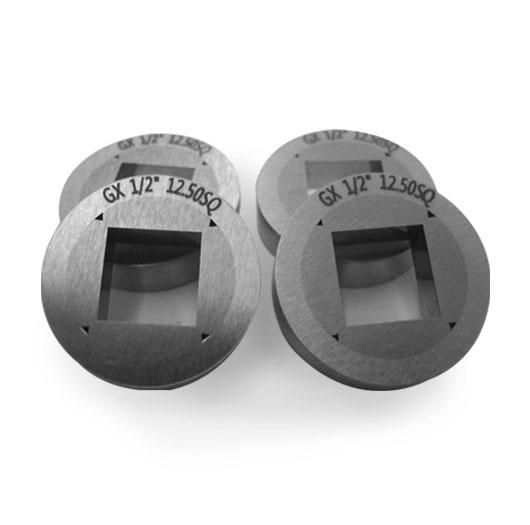

Square-head and hex-head fasteners.
-
Screws and bolts with non-round features.
-
Special cold-formed metal components.
Information Required for a Quote
Please provide:
-
Finished-part and tooling drawings.
-
Profile dimensions and tolerances.
-
Wire material and diameter.
-
Machine model and die case dimensions.
-
Forming stage and reference samples, if available.
FAQ
How does a segmental die differ from a one-piece die?
A segmental die uses multiple working pieces to create the cavity. A one-piece die uses a single working insert.
Why use tungsten carbide?
Tungsten carbide offers high wear resistance and compressive strength, helping maintain the working profile during repeated forming.
Can individual segments be replaced?
Replacement may be possible, depending on the design. Segment matching, case condition and fit must be inspected first.
Does the die open during production?
Not necessarily. Many segmental dies remain fixed inside the supporting case. Movement depends on the assembly design.
Can special profiles be customized?
Yes. Profiles, dimensions and segment arrangements can be reviewed according to your drawings and production requirements.
What affects die service life?
Carbide grade, segment fit, case support, lubrication, machine alignment and forming load all affect service life.
Request a Quote
Send your drawings and production requirements for a review of the die design, material and dimensions.
