GXP supplies a wide range of thread rolling machines for producing external threads on screws and bolts after cold heading. Each machine uses a pair of flat thread rolling dies to form the required thread profile. Machine and die selection depends on the fastener dimensions, thread specifications and production requirements. Custom configurations are available for review based on detailed drawings.

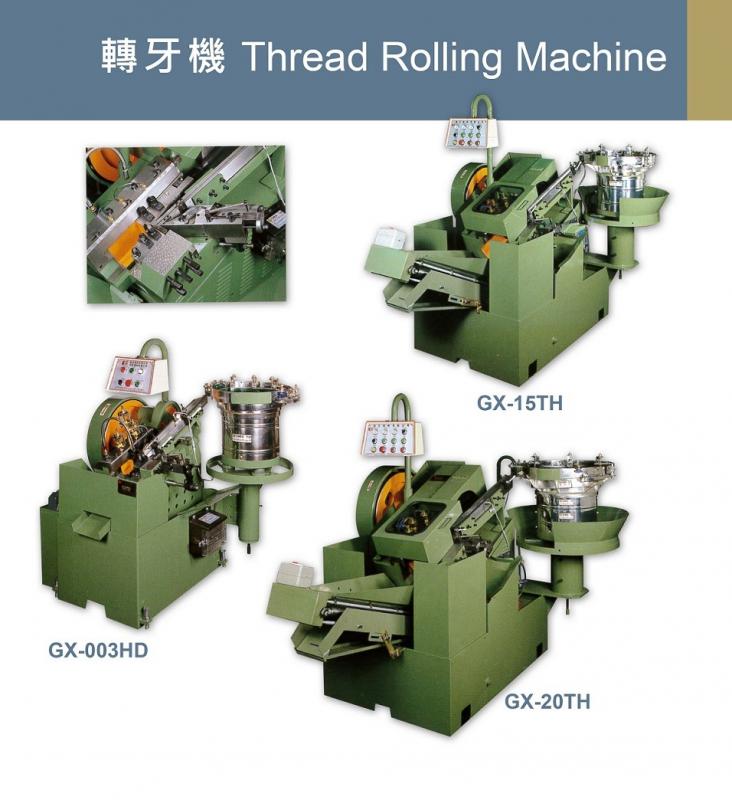

Thread Rolling Machines for Screw and Bolt Production
Machine and die selection depends on the fastener dimensions, thread specifications and production requirements. Custom configurations are available for review based on detailed drawings.
How Does a Thread Rolling Machine Work?
A headed screw or bolt blank is fed between two flat dies of different lengths. One die remains stationary while the other moves, rolling the blank under pressure to form its external thread.
The thread is formed by displacing the blank material rather than cutting it away.
Thread Rolling Dies
Each machine uses one matched set of two flat dies. The dies are selected according to the screw or bolt to be produced, including:
- Thread diameter and pitch.
- Thread profile and threaded length.
- Blank dimensions and material.
- Machine model and die mounting dimensions.
Materials and Processing Requirements
Suitable workpiece materials depend on their ductility, hardness and condition after heading. Rolling die material and heat treatment should be selected according to the workpiece and production requirements.
Please provide material specifications when requesting a machine or tooling recommendation.
Custom Specifications
Special machine configurations and custom thread rolling dies can be reviewed according to customer requirements. Please send a detailed fastener drawing and the required specifications when making an inquiry or placing an order.
Frequently Asked Questions
1. What is a thread rolling machine used for?
It forms external threads on screw and bolt blanks after heading.
2. How many dies does the machine use?
It uses one matched set of two flat dies of different lengths: one stationary die and one moving die.
3. How are the thread rolling dies selected?
Dies are selected to match the required thread profile, fastener dimensions, workpiece material and machine specifications.
4. Can the machine produce different screws and bolts?
Yes, within the machine’s capacity, using suitable dies and machine adjustments.
5. Are custom specifications available?
Yes. Custom requirements can be reviewed based on detailed drawings and production specifications.
6. What information is required for an inquiry?
Please provide the fastener drawing, thread specifications, blank dimensions, material and required production output.
7. Does the machine form the screw head?
No. Heading forms the head first; thread rolling then forms the external thread.
Request a Machine and Tooling Recommendation
Send GXP your screw or bolt drawing, material specifications and production requirements to discuss a suitable thread rolling machine and die set.
