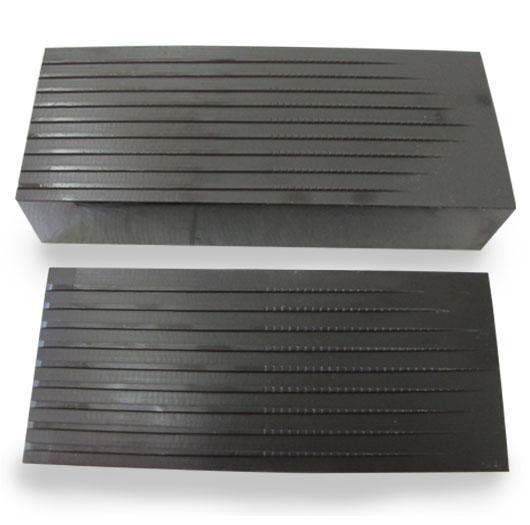

Thread Rolling Dies for Machine Screws with 9 Grooves

GXP Click here

GXP supplies flat thread rolling dies for machine screws with a specified nine-groove design. Each set consists of one stationary die and one moving die, used together to form external screw threads.Die dimensions and forming profiles are specified according to the screw drawing and thread rolling machine. Please provide detailed drawings to confirm the nine-groove geometry and production requirements.

Thread rolling dies are forming tools that create external threads by pressing and displacing the screw blank material.

Definition and Functions

  • Thread forming: Produce the required thread diameter, pitch and profile.
  • Nine-groove design: Tooling is reviewed against the groove position, dimensions and profile shown on the screw drawing.
  • Machine compatibility: Die dimensions match the specified machine and mounting requirements.
  • Custom specifications: Special designs can be reviewed based on detailed drawings.

Materials

Available materials listed on the GXP product page include:

Material Material type
SKD-11 Cold-work tool steel for carbon steel used
DC-53 Cold-work tool steel for carbon steel used
SKH-9 High-speed tool steel for stainless steel used
M2 High-speed tool steel for stainless steel used

Select the die material according to the screw material, blank hardness and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

For an accurate quotation, please provide:

Item Required details
Screw specifications Major diameter, screw length, head style and head dimensions
Thread requirements Metric or inch size, pitch or TPI, standard and tolerance class
Nine-groove details Groove location, direction, width, depth, spacing and profile
Machine information Machine manufacturer and model, or existing die plate dimensions
Screw material Material grade and hardness before rolling
Drawing or sample Detailed screw drawing; existing die drawing or sample if available
Purchase requirements Number of sets, inspection requirements and requested delivery date

FAQ

1. What are these dies used for?
They are used to form external threads on machine screws specified with a nine-groove design.

2. What does “9 grooves” mean?
It refers to the product’s specified groove configuration. The exact geometry and intended function must be confirmed by the screw drawing.

3. How many dies are included in one set?
One set contains two dies: one stationary die and one moving die.

4. Which materials are available?
The product page lists SKD-11, DC-53, SKH-9 and M2. Confirm the suitable grade when requesting a quotation.

5. Can the dies be customized?
Yes. Custom specifications can be reviewed according to detailed drawings and machine requirements.

6. Can the threads and grooves be formed in one operation?
This requires an engineering review of the groove geometry, screw material and machine capability.

7. What information is needed to order replacement dies?
Provide the screw drawing, machine model, existing die dimensions, screw material and required quantity.

Request a Quotation

Send GXP your screw drawing, nine-groove specifications and machine details for technical review and quotation.
