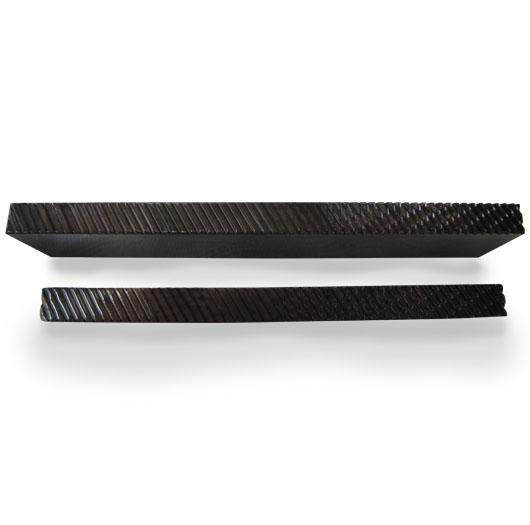

Thread Rolling Dies for Type U Screws

GXP Click here

GXP supplies flat thread rolling dies for Type U screw production. Each set contains one stationary die and one moving die. Custom specifications are available for review according to detailed drawings and machine requirements.

Definition and Functions

Type U thread rolling dies are forming tools used to produce the external helical thread profile of Type U drive screws, also called hammer drive screws.

Type U screws feature multiple-start threads with a large helix angle and an unthreaded pilot point. They are driven into a correctly sized pre-drilled hole for permanent fastening, commonly in nameplate and identification plate applications.

Main tooling functions:

  • Form the specified Type U helical thread profile.
  • Control thread outside diameter and formed length.
  • Produce consistent profiles according to the approved screw drawing.
  • Fit the specified flat-die thread rolling machine.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel for carbon steel used
DC-53 Cold-work tool steel for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider screw material, blank hardness, forming load and production volume. Confirm the exact material grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide the following details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Type U thread profile Number of starts, pitch or lead, helix direction and threaded length
Pilot point Point diameter, length and shape
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both stationary and moving dies
Screw blank Material grade, hardness and blank diameter
Drawing or sample Detailed screw drawing with tolerances; sample if available
Purchase requirements Quantity in sets, inspection requirements and requested delivery date

For multiple-start threads, clearly distinguish pitch from lead on the drawing to avoid specification errors.

FAQ

1. What are Type U thread rolling dies used for?
They form the external helical threads of Type U drive screws according to the specified screw profile.

2. How are Type U screws different from ordinary machine screws?
Type U screws have multiple-start threads with a large helix angle and are driven into a prepared hole. Ordinary machine screws are typically installed by rotation into a matching internal thread.

3. How many dies are supplied per set?
Each set includes two pieces: one stationary die and one moving die.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The appropriate grade should be confirmed against production requirements.

5. Can the dies be customized?
Yes. Send a detailed screw drawing and machine specifications for feasibility review and quotation.

6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Check thread outside diameter, formed length, thread profile and pilot point dimensions against the drawing. Where required, verify installation and retention performance in the specified mating material.

Request a Quotation

Send GXP your Type U screw drawing, blank material, machine model and die dimensions for technical review and quotation.
