Drywall Screw Thread Rolling Die

GXP Click here

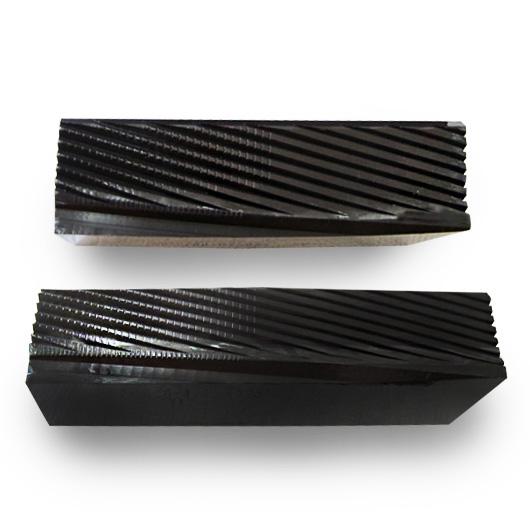

GXP supplies flat thread rolling dies for forming external threads on drywall screws. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to screw drawings and machine requirements.

Definition and Functions

A drywall screw thread rolling die is a forming tool that creates screw threads by pressing and displacing the blank material between two die plates.

Main functions:

  • Form the required thread profile, pitch and outside diameter.
  • Control the threaded length according to the screw drawing.
  • Support consistent thread production with correctly prepared blanks and machine settings.
  • Match the die dimensions to the specified thread rolling machine.

Specify the required coarse, fine or other thread design on the drawing for tooling review. Any point-forming requirements should also be confirmed before ordering.

Die Materials

The GXP product page lists the following materials.

Material Material Type
SKD-11 Cold-work tool steel  for carbon steel used
DC-53 Cold-work tool steel  for carbon steel used
SKH-9 High-speed tool steel for stainless steel used
M2 High-speed tool steel for stainless steel used

The appropriate material depends on screw blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide the following details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Thread type, pitch or TPI, threaded length and tolerances
Point design Point shape, dimensions and any point-forming requirements
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both stationary and moving dies
Screw blank Material grade, hardness before rolling and blank diameter
Drawing or sample Detailed screw drawing; existing die drawing or sample if available
Purchase requirements Quantity in sets, inspection requirements and requested delivery date

FAQ

1. What does a drywall screw thread rolling die do?
It forms external threads on drywall screw blanks through a pressure-forming process.

2. Can I order dies for coarse or fine threads?
Submit the required thread drawing for review. Pitch, thread profile and screw dimensions must be confirmed before production.

3. How many dies are included in one set?
One set contains two pieces: one stationary die and one moving die.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Material selection should match the screw blank and production requirements.

5. Can the dies form the screw point as well as the threads?
This depends on the point design and tooling configuration. Provide the complete screw drawing to confirm feasibility.

6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both die plates, including mounting details.

7. What should be checked during trial production?
Check thread outside diameter, pitch, profile, threaded length and point geometry against the approved drawing. Also inspect for incomplete threads, laps and surface damage.

Request a Quotation

Send GXP your drywall screw drawing, blank material, machine model and die dimensions for technical review and quotation.
