Micro Screw Thread Rolling Dies

GXP Click here

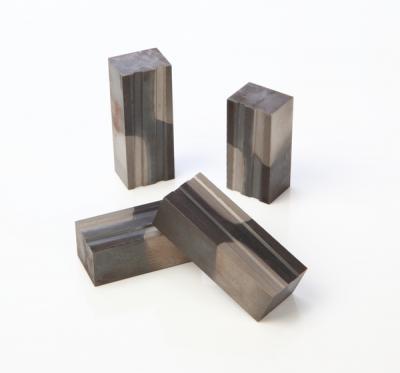

GXP supplies flat thread rolling dies for micro screw production. Each set contains one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

Micro screw thread rolling dies are forming tools used to create external threads on small-diameter screw blanks. The dies form the thread by displacing material under pressure.

Main functions:

  • Form the specified thread profile, pitch and diameter.
  • Control threaded length according to the screw drawing.
  • Support repeatable production when blank dimensions and machine settings are controlled.
  • Fit the die mounting dimensions of the specified rolling machine.

The minimum screw size and achievable tolerances require technical confirmation.

Die Materials

The GXP product page lists these material options.

Material Material Type
SKD-11 Cold-work tool steel   for carbon steel used
DC-53 Cold-work tool steel   for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider screw material, blank hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide the following details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Pitch or TPI, thread standard, tolerance class and threaded length
Screw blank Material grade, hardness before rolling, blank diameter and tolerance
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both stationary and moving dies
Drawing or sample Detailed screw drawing with revision number; sample if available
Inspection requirements Required gauges, measurement methods and acceptance criteria
Purchase requirements Quantity in matched sets and requested delivery date

For micro screws, clearly specify blank diameter tolerance and thread inspection requirements before tooling approval.

FAQ

1. What are micro screw thread rolling dies used for?
They form external threads on small-diameter screw blanks according to the specified thread drawing.

2. What is the minimum screw diameter available?
The product page does not state a minimum diameter. Submit the screw size, pitch, material and drawing for feasibility review.

3. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade should be confirmed against production requirements.

4. How many dies are included in one set?
Each set includes two pieces: one stationary die and one moving die.

5. Can the dies be customized?
Yes. Custom specifications can be reviewed using detailed screw drawings and machine information.

6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both die plates, including mounting details.

7. What should be checked during trial production?
Check thread major and pitch diameters, pitch, profile, threaded length and surface condition against the approved drawing. Use the agreed gauges and inspection methods.

Request a Quotation

Send GXP your micro screw drawing, blank material and hardness, machine model and die dimensions for technical review and quotation.
