Flat Thread Rolling Dies

GXP Click here

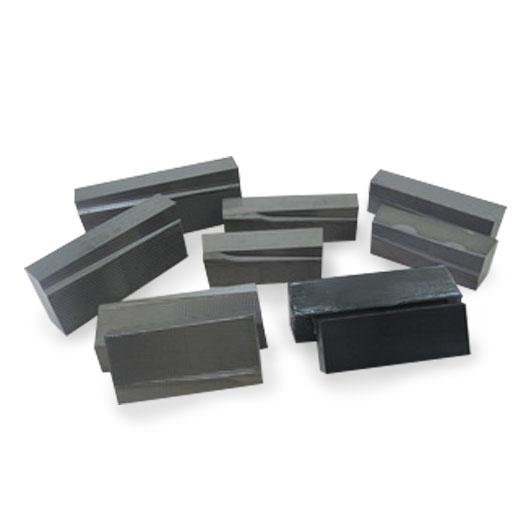

GXP supplies flat thread rolling dies for screw thread production. Each matched set consists of one stationary die and one moving die. Custom specifications are available for review according to detailed drawings and machine requirements.

Definition and Functions

Flat thread rolling dies are paired forming tools with thread profiles on their working surfaces. As the moving die rolls the blank against the stationary die, pressure displaces the material to form external threads.

Main functions:

  • Form the specified thread profile, pitch and diameter.
  • Control threaded length according to the fastener drawing.
  • Support repeatable screw and bolt production.
  • Match the tooling to the machine’s die mounting dimensions.

Thread quality depends on die accuracy, blank preparation, alignment and rolling conditions.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel   for carbon steel used
DC-53 Cold-work tool steel   for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Select the material according to blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Fastener dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Metric or inch size, pitch or TPI, thread standard, tolerance class and threaded length
Blank specifications Material grade, hardness before rolling, blank diameter and tolerance
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both stationary and moving dies, including mounting details
Special features Point shape, grooves, multiple-start threads or other custom profiles
Drawing or sample Detailed fastener drawing with revision number; sample if available
Purchase requirements Quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are flat thread rolling dies used for?
They form external threads on screw and bolt blanks by displacing material under pressure.

2. How many dies are supplied per set?
Each set includes two pieces: one stationary die and one moving die.

3. Which materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade should be confirmed against production requirements.

4. Can the dies be made for metric and inch threads?
Submit the required thread size, pitch or TPI, standard and tolerance class for technical review.

5. Are custom thread profiles available?
Custom specifications can be reviewed according to detailed drawings, blank material and machine capability.

6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both die plates. Existing die drawings or samples can help confirm the fit.

7. What affects die life and thread quality?
Key factors include blank material and hardness, blank diameter consistency, die alignment, lubrication, rolling speed and die wear.

Request a Quotation

Send GXP your fastener drawing, blank specifications, machine model and die dimensions for technical review and quotation.
