Blank Sharp Point Screw Thread Rolling Dies
GXP Click here

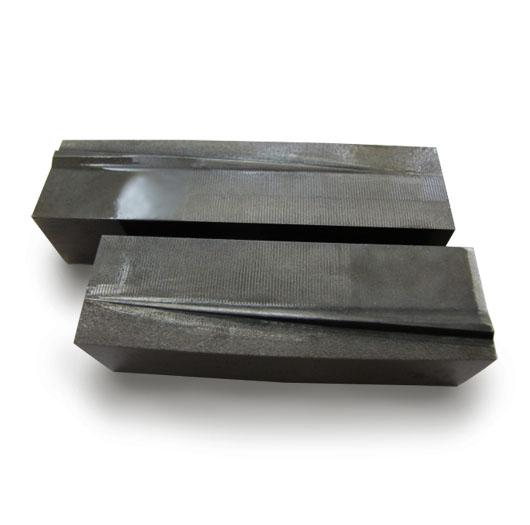

GXP supplies flat thread rolling dies for sharp-point screw production. Each set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.
Definition and Functions
Blank Sharp Point Screw Thread Rolling Dies are forming tools used to roll external threads on screw blanks intended for sharp-point screws. Pressure between the die plates displaces the blank material to create the required thread profile.
Main functions:
- Form the specified thread diameter, pitch and profile.
- Control threaded length and the thread transition toward the point.
- Match the tooling dimensions to the thread rolling machine.
- Support repeatable production with controlled blanks and machine settings.
Point-forming capability requires confirmation. The product page does not specify whether these dies form the sharp point or require a pre-pointed blank. Submit both the blank drawing and finished screw drawing for review.
Die Materials
GXP lists the following material options for this product.
| Material | Material Type |
|---|---|
| SKD-11 | Cold-work tool steel for carbon steel used |
| DC-53 | Cold-work tool steel for carbon steel used |
| SKH-9 | High-speed tool steel for stainless steel used |
| M2 | High-speed tool steel for stainless steel used |
Material selection should consider blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.
Ordering Information
Please provide these details for technical review and quotation:
| Item | Required Information |
|---|---|
| Screw dimensions | Major diameter, overall length, head style and head dimensions |
| Thread specifications | Pitch or TPI, thread profile, threaded length and tolerances |
| Point specifications | Point angle, point length, tip requirements and thread coverage |
| Blank specifications | Material grade, hardness, diameter, length and condition before rolling |
| Machine details | Machine manufacturer and model |
| Die dimensions | Length, height and thickness of both dies, including mounting details |
| Drawings or samples | Finished screw drawing and blank drawing; samples if available |
| Purchase requirements | Quantity in matched sets, inspection requirements and requested delivery date |
FAQ
1. What are these dies used for?
They form external threads on blanks used to produce sharp-point screws.
2. Can they form the sharp point and threads in one operation?
This must be confirmed through technical review. Provide the starting blank geometry and finished point specifications.
3. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade depends on production requirements.
4. How many dies are included in one set?
Each set contains two pieces: one stationary die and one moving die.
5. Can the thread and point specifications be customized?
Custom requirements can be reviewed against detailed drawings, blank material and machine capability.
6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both existing die plates, including mounting details.
7. What should be checked during trial production?
Inspect thread diameter, pitch, profile, threaded length and point geometry against the approved drawing. Check for incomplete threads, laps, burrs and tip damage.
Request a Quotation
Send GXP your finished screw drawing, blank drawing, material specifications and machine details for tooling review and quotation.
