Thread Rolling Dies for BT-AB Type Threads

GXP Click here

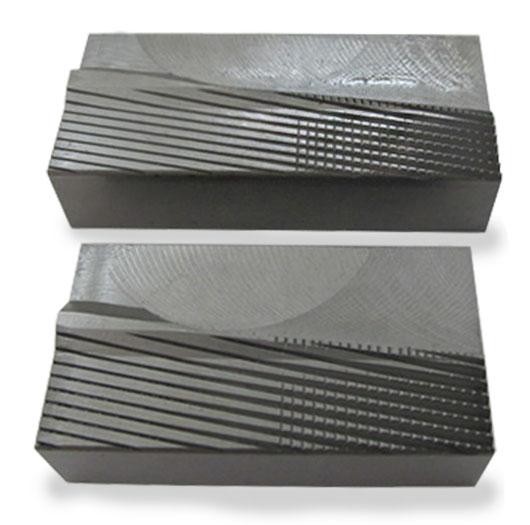

GXP supplies flat thread rolling dies for BT-AB type screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

BT-AB type thread rolling dies are forming tools used to produce the specified external screw thread profile. The screw blank rolls between two die plates, where pressure displaces the material to form the threads.

Main functions:

  • Form the required thread profile, pitch and diameter.
  • Control threaded length and thread transition near the point.
  • Match the tooling dimensions to the thread rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

Specify the exact BT or AB profile on the drawing. The website uses “BT-AB” as a product designation but does not define the differences between the profiles or establish that one die set produces both types.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel   for carbonsteel used
DC-53 Cold-work tool steel   for carbonsteel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider screw blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread design Required BT or AB profile, applicable standard or drawing, pitch or TPI and tolerances
Threaded length Full or partial thread, including runout requirements
Point specifications Point shape, angle, length and any point-forming requirements
Blank specifications Material grade, hardness before rolling, blank diameter and length
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are BT-AB type thread rolling dies used for?
They form external threads on screw blanks according to the specified BT or AB screw design.

2. Can one die set produce both BT and AB types?
Do not assume interchangeability. Differences in thread and point geometry must be reviewed before confirming the tooling.

3. Which materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable material depends on the blank and production requirements.

4. How many dies are supplied per set?
Each set contains two pieces: one stationary die and one moving die.

5. Can the dies form the screw point?
Point-forming capability depends on the tooling configuration and starting blank. Submit both blank and finished screw drawings for review.

6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Inspect thread diameter, pitch, profile, threaded length and point geometry against the approved drawing. Check for incomplete threads, laps, burrs and surface damage.

Request a Quotation

Send GXP your BT or AB screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
