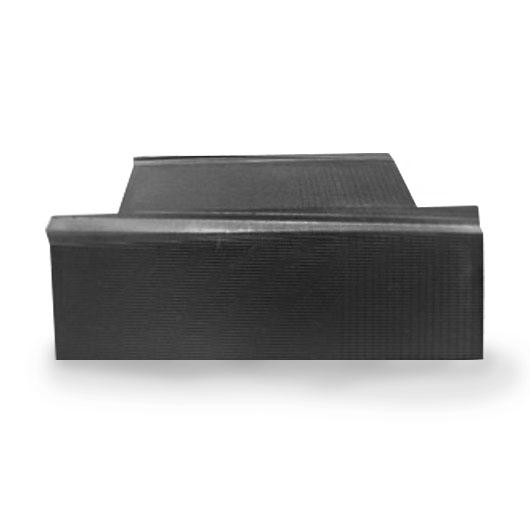

Thread Rolling Dies for CA Type Threads

GXP Click here

GXP supplies flat thread rolling dies for CA type screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

CA type thread rolling dies are forming tools used to produce the specified external thread profile on screw blanks. Pressure between the die plates displaces the blank material to form the threads.

Main functions:

  • Form the required thread profile, pitch and diameter.
  • Control threaded length according to the screw drawing.
  • Match die dimensions to the specified rolling machine.
  • Support consistent production with controlled blanks and correct machine settings.

The website identifies this product as “CA Type” but does not define its thread geometry. Provide a drawing or applicable standard to confirm the exact profile, point design and tolerances.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel    for carbon steel used
DC-53 Cold-work tool steel    for carbon steel used
SKH-9 High-speed tool steel   for stainless steel used
M2 High-speed tool steel   for stainless steel used

Material selection should consider blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
CA thread profile Detailed drawing or applicable standard, pitch or TPI, thread angle and tolerances
Threaded length Full or partial thread, including runout requirements
Point design Point shape, dimensions and any point-forming requirements
Blank specifications Material grade, hardness before rolling, blank diameter and length
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are CA type thread rolling dies used for?
They form external screw threads according to the specified CA type profile and approved drawing.

2. Is “CA Type” sufficient information for ordering?
A detailed drawing or applicable standard is needed to confirm thread geometry, dimensions and tolerances.

3. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade depends on the blank material and production requirements.

4. How many dies are included in one set?
Each set contains two pieces: one stationary die and one moving die.

5. Can the dies form the screw point?
Point-forming capability requires review of the starting blank, finished point geometry and machine capability.

6. Can the dies be customized for my machine?
Custom specifications can be reviewed. Provide the machine model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Inspect thread diameter, pitch, profile, threaded length and point geometry against the approved drawing. Check for incomplete threads, laps and surface damage.

Request a Quotation

Send GXP your CA type screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
