Chipboard Screw Thread Rolling Dies

GXP Click here

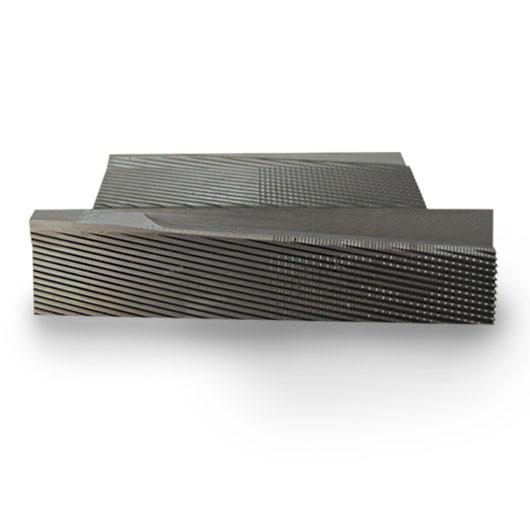

GXP supplies flat thread rolling dies for chipboard screw production, including the 40° thread angle design listed on its website. Each matched set contains one stationary die and one moving die. Custom specifications can be reviewed according to detailed drawings and machine requirements.

Definition and Functions

Chipboard screw thread rolling dies are forming tools that create external threads on screw blanks. Pressure between the die plates displaces the blank material into the specified thread profile.

Main functions:

  • Form the required thread angle, pitch and diameter.
  • Control threaded length and the thread transition toward the point.
  • Match die dimensions to the specified rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

For the website-listed design, specify the 40° included thread angle on the drawing. Confirm any alternative profile, cutting notch or point-forming requirement during technical review.

Die Materials

GXP lists the following material options for its thread rolling dies.

Material Material Type
SKD-11 Cold-work tool steel   for carbon steel used
DC-53 Cold-work tool steel   for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider screw blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread profile Included thread angle, pitch, root diameter and tolerances
Threaded length Full or partial thread, including unthreaded shank and runout
Point and special features Point dimensions, cutting notches, serrations or other features
Blank specifications Material grade, hardness before rolling, blank diameter and length
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are chipboard screw thread rolling dies used for?
They form external threads on blanks used to manufacture chipboard screws.

2. What thread angle does GXP list for chipboard screws?
The website lists a 40° thread angle. Confirm the exact profile and tolerances on the approved drawing.

3. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade depends on the blank material and production conditions.

4. How many dies are included in one set?
Each set includes two pieces: one stationary die and one moving die.

5. Can the dies produce full-thread and partial-thread screws?
Submit the required threaded length, unthreaded shank dimensions and thread runout for tooling review.

6. Can the dies form sharp points or cutting notches?
These features require a feasibility review. Provide both the starting blank drawing and finished screw drawing.

7. What should be checked during trial production?
Inspect thread angle, pitch, major and root diameters, threaded length and point geometry. Check for incomplete threads, laps and surface damage. Verify installation performance in the specified board material where required.

Request a Quotation

Send GXP your chipboard screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
