Thread Rolling Dies for Double-End Screws

GXP Click here

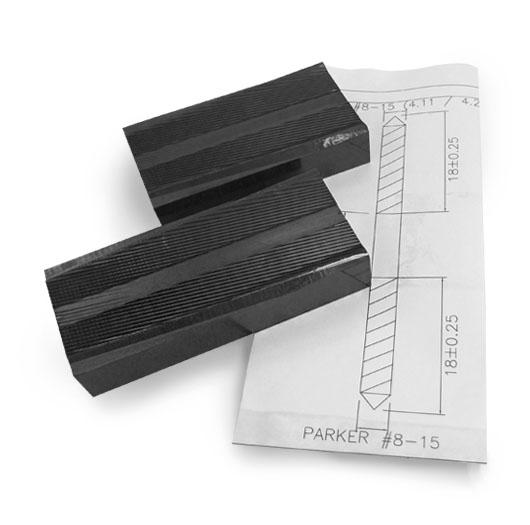

GXP supplies flat thread rolling dies for double-end screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

Double-end screw thread rolling dies are forming tools used to produce external threaded sections at both ends of a screw blank. Pressure between the die plates displaces material into the required thread profile.

Main functions:

  • Form the specified thread diameter, pitch and profile at each end.
  • Control the length and position of both threaded sections.
  • Accommodate a central unthreaded section where specified.
  • Match die dimensions to the selected rolling machine.

The website does not confirm whether both ends are rolled simultaneously. The forming sequence and number of die sets depend on the two thread designs, blank geometry and machine capability.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel   for carbon steel used
DC-53 Cold-work tool steel   for carbon steel  used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Clearly label both ends as End A and End B on the drawing.

Item Required Information
Overall dimensions Total length, blank diameters and dimensional tolerances
End A thread Thread type, diameter, pitch or TPI, direction, tolerance and threaded length
End B thread Thread type, diameter, pitch or TPI, direction, tolerance and threaded length
Central section Unthreaded length, diameter, shoulders or driving features
End geometry Point, chamfer, taper and thread lead-in at each end
Blank specifications Material grade, hardness and dimensions before rolling
Machine and dies Machine manufacturer, model, dimensions of both die plates and mounting details
Purchase requirements Drawing revision, quantity, inspection criteria and requested delivery date

FAQ

1. What are these dies used for?
They form the specified threaded sections on double-end screw blanks.

2. Can both ends be rolled in one operation?
This requires a feasibility review. Separate operations or die sets may be needed depending on thread geometry and machine capability.

3. Can the two ends have different threads?
Submit each end’s diameter, pitch, profile and threaded length for technical review.

4. Can one end have a right-hand thread and the other a left-hand thread?
Specify the thread direction for each end. The tooling and production sequence must be confirmed before ordering.

5. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Each matched set contains one stationary die and one moving die.

6. Can the dies preserve a central unthreaded section?
Provide the central section dimensions, tolerances and thread runout requirements for tooling review.

7. What should be checked during trial production?
Inspect each end separately for thread diameter, pitch, direction, profile and length. Also check overall length, central section dimensions, straightness and surface condition.

Request a Quotation

Send GXP your double-end screw drawing with End A and End B specifications, blank details and machine information for technical review and quotation.
