Thread Rolling Dies for Nail Screws

GXP Click here

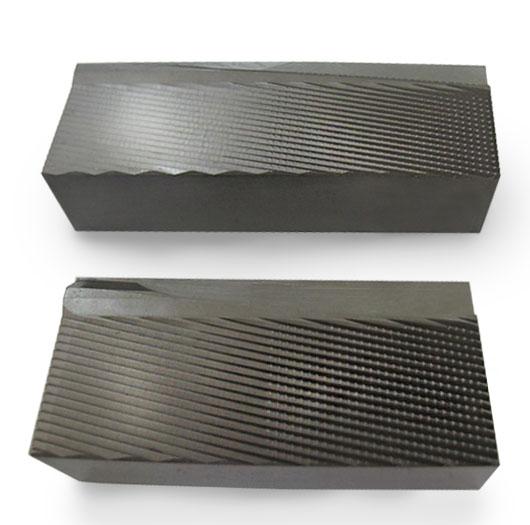

GXP supplies flat thread rolling dies for nail screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed fastener drawings and machine requirements.

Definition and Functions

Nail screw thread rolling dies are forming tools used to create the specified external thread or helical shank profile on fastener blanks. Pressure between the die plates displaces material into the required profile.

Main functions:

  • Form the specified thread or helical profile.
  • Control outside diameter, pitch and formed length.
  • Match die dimensions to the selected rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

The website does not define the exact “nail screw” geometry. Provide a drawing or sample to confirm the shank profile, point design and intended installation method.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel  for carbon steel used
DC-53 Cold-work tool steel  for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider blank material, hardness, profile geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Item Required Information
Fastener dimensions Major diameter, overall length, head style and head dimensions
Shank profile Thread or helical geometry, pitch, lead, direction and number of starts, where applicable
Formed section Formed length, unthreaded shank length and transition requirements
Point design Point shape, length, angle and tolerances
Blank specifications Material grade, hardness before rolling, diameter, length and point condition
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection criteria and requested delivery date

FAQ

1. What are nail screw thread rolling dies used for?
They form the specified external thread or helical shank profile on nail screw blanks.

2. Are nail screws the same as ordinary screws or spiral nails?
The product name alone does not establish the geometry. Confirm the profile and installation method using a drawing or sample.

3. Can these dies produce ring-shank nails?
Ring-shank and helical profiles require different tooling geometry. Submit the required design for feasibility review.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Material suitability depends on production requirements.

5. How many dies are included in one set?
Each set contains one stationary die and one moving die.

6. Can the dies fit my existing machine?
Provide the machine manufacturer, model and dimensions of both existing die plates for compatibility review.

7. What should be checked during trial production?
Inspect outside diameter, profile, pitch or lead, formed length, straightness and point condition. Check for laps, incomplete forming and surface damage. Include driving and withdrawal tests where required.

Request a Quotation

Send GXP your nail screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
