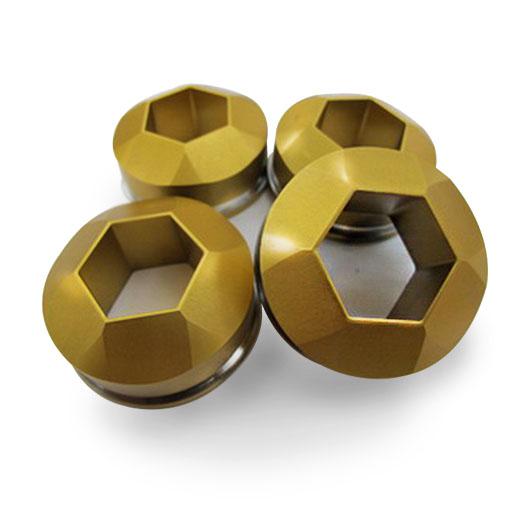

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies TiN coated hexagon trimming dies for screw and bolt head trimming. These tools remove excess material from preformed heads to produce the required external hexagon profile.

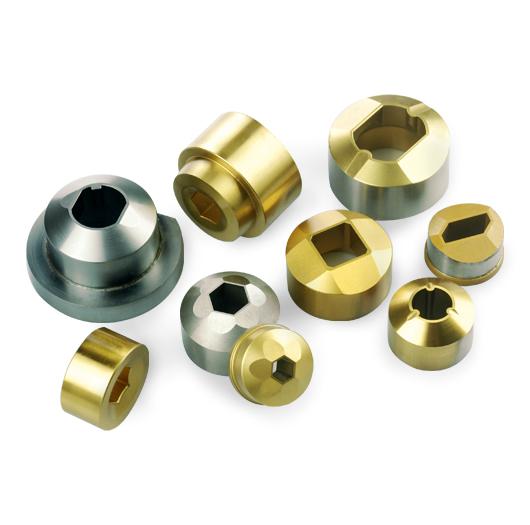

Solid and inserted designs are available according to customer drawings and machine requirements.
High Quality Hexagon Trimming Dies - TiN Coated

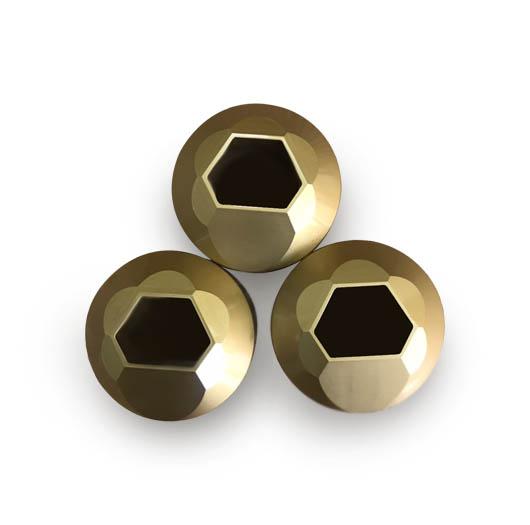

A hexagon trimming die is a cutting tool used after head forming to trim a screw or bolt head into its specified six-sided shape.
Main functions:
-
Remove excess material around the preformed head.
-
Produce the required hexagon profile and across-flats dimension.
-
Maintain consistent head dimensions for wrench engagement.
Materials and Surface Treatment
| Item | Specification |
|---|---|
| Material options | SKH-9, M2, SKH-55 |
| Featured surface treatment | TiN — Titanium Nitride |
| Alternative surface options | Plain (uncoated), TiAlN |

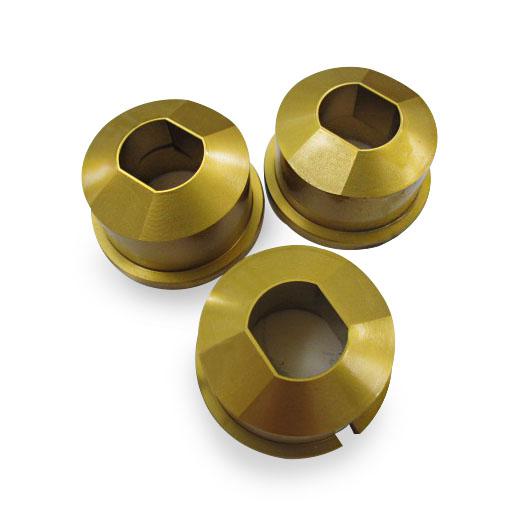

| Construction | Solid one-piece or two-piece inserted type |

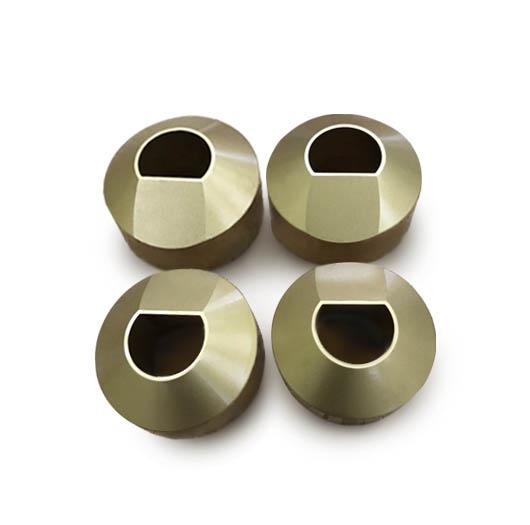

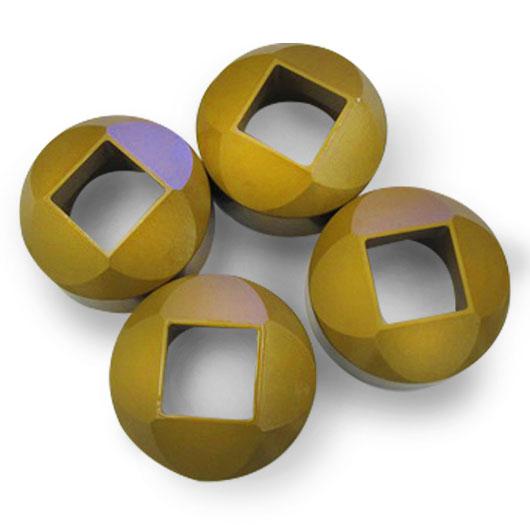

| Head profiles | Hexagon, square or custom |
| Dimensions | According to customer drawings |
| Minimum order quantity | 5–10 pieces; confirmed with quotation |
| Packing | Standard carton |
TiN coating is used to improve surface wear resistance. Material and coating selection should match the workpiece material and trimming conditions. Actual tool life depends on machine alignment, lubrication, cutting load and maintenance.
Ordering Information
Please provide the following details for quotation:
-
Die dimensions: Outside diameter, overall height or length, and mounting dimensions.
-
Head specifications: Across-flats dimension, head height, profile and tolerances.
-
Workpiece details: Material grade, hardness and dimensions before trimming.
-
Machine information: Machine model and trimming station requirements.
-
Die construction: Solid or inserted type.
-
Material and coating: Preferred material grade and TiN coating requirement.
-
Quantity and schedule: Required quantity and requested delivery date.
A detailed die drawing and finished fastener drawing are recommended. Existing tool or fastener samples may also be provided for review.
FAQ
What are TiN coated hexagon trimming dies used for?
They trim excess material from preformed screw or bolt heads to produce the required external hexagon shape.
What is the purpose of TiN coating?
TiN coating helps improve surface wear resistance. Its effectiveness depends on the workpiece material, trimming conditions and machine setup.
Which materials are available?
Available material options include SKH-9, M2 and SKH-55. The grade should be selected according to the application.
What is the difference between solid and inserted types?
A solid die has a one-piece construction. An inserted die consists of a working insert assembled into a supporting body.
Can the die be customized?
Yes. Die dimensions, across-flats size and head profile can be reviewed according to customer drawings and machine requirements.
Are other head shapes or surface treatments available?
Square and custom head profiles are available. Plain and TiAlN surface options are also listed.
What information is needed for a quotation?
Please provide die dimensions, across-flats size, drawings, workpiece material, machine information and order quantity. The listed minimum order quantity is 5–10 pieces, subject to confirmation.
Request a Quotation
Send your die drawing, fastener specifications and required quantity to GXP for specification review and quotation.
