Second punches form the final screw head profile and drive recess during the second blow of a typical two-blow cold heading process. Manufactured by JD in Taiwan and supplied through GXP, they are available in various head styles, recess profiles, HSS materials and coating options to suit specific production requirements.

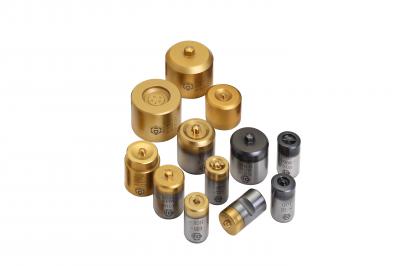

Second Punches for Screw Head and Recess Forming
Precision second punches designed and manufactured by JD in Taiwan. GXP provides sales support, specification coordination and quotations for standard and custom requirements.
What Is a Second Punch?
A second punch is a forming tool used in the second blow of a typical two-blow screw heading process. After the first punch preforms the wire blank, the second punch produces the final head shape and, where required, the drive recess.
The punch geometry must match the screw drawing, applicable standard and heading machine specifications.
Main Functions
- Head forming: Produces the required screw head shape and dimensions.
- Recess forming: Creates the drive recess for screwdriver or driver bit engagement.
- Consistent production: Helps maintain uniform head profiles, recess depths and recess positions.
- Surface quality: Supports well-defined head surfaces and recess features under suitable forming conditions.
Materials and Selection
Second punches are commonly manufactured from high-speed steel (HSS). Material selection depends on the screw wire material, forming load, recess geometry and production conditions.
| Material | Key Characteristics |
|---|---|
| M2 HSS | Balanced toughness and wear resistance for general forming applications. |
| M42 HSS | High hardness and resistance to softening at elevated temperatures. |
Material grades and heat treatment requirements should be confirmed during specification review.
Surface Coating Options
Coatings such as TiN and TiAlN may be specified to improve surface wear resistance and help reduce material adhesion.
Coating selection should consider the punch material, screw wire material, lubrication and forming conditions. Available options are subject to specification confirmation.
Head Styles and Recess Profiles
Second punches can be designed for different screw head and drive recess combinations.
| Head Styles | Recess Profiles |
|---|---|
| Pan head | Phillips |
| Flat / countersunk head | Pozidriv |
| Truss head | Hexagon socket |
| Round head | Square |
| Custom head profiles | Six-lobe and special profiles |
Available combinations depend on the screw geometry and tooling design.
Custom Specifications
Second punches can be manufactured according to customer drawings or samples. Key specifications include punch dimensions, head profile, recess geometry, material and coating.
For specification review and quotation, please provide:
- Screw drawing and applicable standard
- Screw head style and recess type
- Wire material and diameter
- Punch outside diameter, overall length and mounting dimensions
- Heading machine model
- Required material and coating, if specified
- Order quantity
- Existing punch drawing or sample, if available
Manufactured by JD, Supplied Through GXP
JD handles second punch design and manufacturing in Taiwan. GXP acts as the sales agent, coordinating customer requirements, specifications and quotations.
Request a Second Punch Quotation
Send GXP your screw drawing, punch specifications or sample details. We will coordinate with JD to review your requirements and prepare a quotation.
