#0 Micro Screw Header Punch

GXP Click here

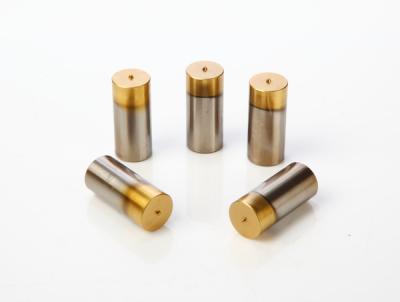

#0 micro screw header punches form the head profile and drive recess of miniature screws during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

#0 Micro Screw Header Punch

Precision forming tools for miniature screw heads and drive recesses.

Definition and Functions

A micro screw header punch shapes the head of a miniature screw. When used as the second punch in a two-blow heading process, it forms the final head profile and drive recess.

Main functions include:

  • Forming the required screw head shape and dimensions.

  • Producing the specified drive recess.

  • Helping maintain consistent head geometry and recess position.

Please confirm the “#0” designation with a drawing or standard, as it may identify a screw size, recess size or tool model.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Dimensions and Specifications

Punch dimensions are made to the approved drawing and machine requirements.

Item Specification Details
Punch body Outside diameter, overall length and mounting dimensions
Screw head Head style, diameter and height
Drive recess Recess type, size and depth
Working tip Profile and projection
Tolerances As specified on the approved drawing

Please provide dimensions in millimeters unless otherwise specified.

Head and Recess Options

  • Head styles: Pan, countersunk, round and custom profiles.

  • Recess types: Phillips, six-lobe, hexagon socket and custom profiles.

Available combinations are subject to drawing review.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your screw and punch drawings, wire material, heading machine model and required quantity for review and quotation.
