Six-Lobe recess punches

GXP Click here

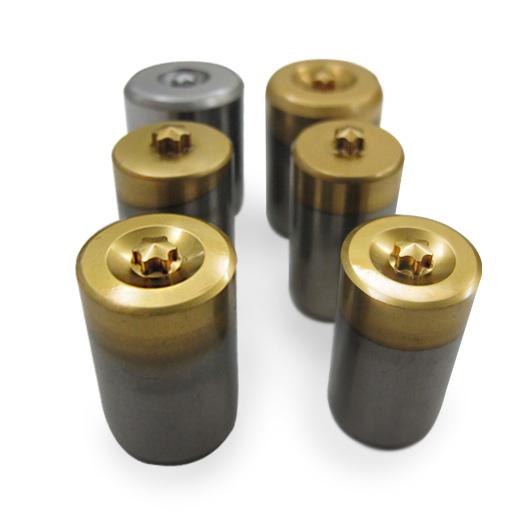

Six-lobe recess punches form the internal six-lobe drive profile in screw heads during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

Six-Lobe Recess Punches

Precision forming tools for six-lobe screw drive recesses, available in metric and inch specifications.

Definition and Functions

A six-lobe recess punch forms a screw drive recess with six rounded lobes. The finished recess engages a matching driver bit to transmit torque during fastening.

Main functions include:

  • Forming the specified six-lobe recess profile.

  • Controlling recess size, depth and position.

  • Helping maintain consistent driver fit across production.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Available Sizes and Specifications

Standard punch body diameters (D) & length:

 Metric  Inch
Ø12 mm x 25 Ø11.11 x 25.40
Ø14 mm x 25 Ø14.28 x 25.40
Ø18 mm x 25 Ø22.22 x 25.40
Ø23 mm x 25 Ø25.40 x 25.40

Item Specification Details
Dimension system Metric and inch specifications available
Overall length (L) Specified in millimeters or inches according to the customer drawing and machine requirements
Recess profile Six-lobe size and geometry according to the applicable standard or drawing
Working tip Profile and projection according to the approved drawing
Tolerances Confirmed during specification review

Special diameters, lengths, profiles and other requirements are available upon discussion and subject to technical review.

Available Options

  • Standard and custom six-lobe profiles.

  • Recess-forming pins or complete header punches, subject to tooling design.

  • Different screw head profiles when supplied as a complete header punch.

  • Material and coating options to suit production requirements.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your screw and punch drawings, required diameter and length, metric or inch specifications, wire material and order quantity for review and quotation.
