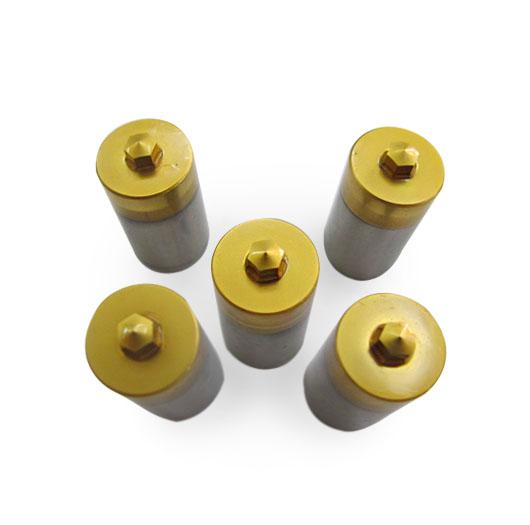

DIN 7991 Hexagon Punch

GXP Click here

DIN 7991 hexagon punches form the internal hexagon socket of countersunk screws during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

DIN 7991 Hexagon Punch

Precision forming tools for hexagon socket countersunk screws.

Definition and Functions

A DIN 7991 hexagon punch forms the internal hexagon recess used to engage a matching hex key or driver bit.

Main functions include:

  • Forming the specified hexagon socket profile.

  • Controlling socket size, depth and position.

  • Helping maintain consistent driver fit during production.

DIN 7991 identifies the screw specification. Punch dimensions must be confirmed separately according to the approved tooling drawing.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Available Sizes and Specifications

Punch body diameter options (D) & length:

Metric Inch
Ø12 mm x 25L Ø11.11 x 25.4L
Ø14 mm x 25L Ø14.28 x 25.4L
Ø18 mm x 25L Ø22.22 x 25.4L
Ø23 mm x 25L Ø25.40 x 25.4L

Item Specification Details
Dimension system Metric and inch tooling specifications available
Overall length (L) According to the customer drawing, specified in millimeters or inches
Hexagon profile Socket width across flats, corner geometry and forming depth
Working tip Profile and projection according to the approved drawing
Mounting dimensions According to the heading machine and punch holder
Tolerances Confirmed during specification review

Metric and inch tooling dimensions do not change the specified screw standard.

Special diameters, lengths, profiles and other requirements are subject to discussion and technical review.

Available Options

  • Hexagon recess-forming pins or complete header punches.

  • Countersunk head-forming profiles when supplied as a complete header punch.

  • Custom tooling dimensions for different heading machines.

  • Material and coating options to suit production requirements.

Please specify the required DIN 7991 edition or DIN EN ISO 10642 requirements when submitting an inquiry.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your screw and punch drawings, hexagon socket dimensions, required punch diameter and length, wire material and order quantity for review and quotation.
