DIN84(-) Modified Screw Header Punch

GXP Click here

DIN 84 (-) modified screw header punches form customized slotted screw heads during cold heading. Based on the DIN 84 cheese head design, the head profile and slot geometry are adjusted according to customer drawings.JD manufactures the punches in Taiwan, while GXP handles sales, specification coordination and quotations.

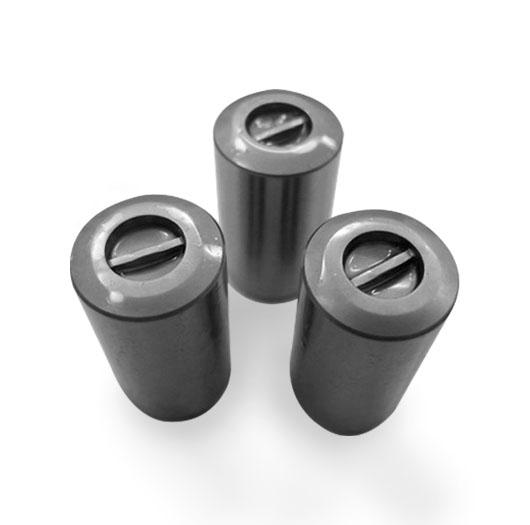

DIN 84 (-) Modified Screw Header Punch D14x25L

Precision header punches for modified slotted cheese head screws.

Definition and Functions

A DIN 84 (-) modified screw header punch forms the screw head profile and straight drive slot. The “(-)” designation indicates a slotted drive for engagement with a flat-blade screwdriver.

Main functions include:

  • Forming the required screw head shape and dimensions.

  • Producing the specified slot width, depth and position.

  • Helping maintain consistent head geometry and driver fit.

“Modified” indicates changes from the reference design. Final dimensions and standard compliance must be confirmed against the approved drawing.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Available Sizes and Specifications

Punch body diameter options (D) and length:

 Metric Inch
Ø12 mm x 25L Ø11.11 x 25.4L
Ø14 mm x 25L Ø14.28 x 25.4L
Ø18 mm x 25L Ø22.22 x 25.4L
Ø23 mm x 25L Ø25.40 x25.4L

Item Specification Details
Dimension system Metric and inch tooling specifications available
Overall length (L) According to the customer drawing, specified in millimeters or inches
Head profile Head diameter, height, radii and modified features
Slot geometry Slot width, depth and forming profile
Mounting dimensions According to the heading machine and punch holder
Tolerances According to the approved drawing

Special diameters, lengths, head profiles and slot dimensions are subject to discussion and technical review.

Available Options

  • Modified cheese head profiles.

  • Custom slot widths and depths.

  • Tooling dimensions for different heading machines.

  • Material and coating options to suit production requirements.

Please provide a drawing showing all modifications from the reference screw design.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your screw and punch drawings, required diameter and length, slot dimensions, wire material and order quantity for review and quotation.
