Drywall Screw F270, F280 Recess Punch

GXP Click here

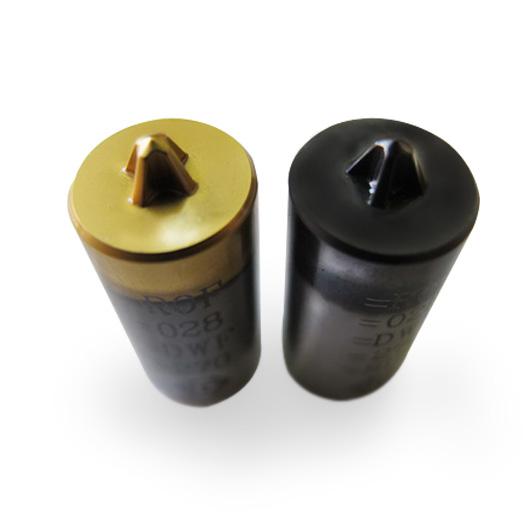

F270 and F280 drywall screw recess punches form the drive recess in drywall screw heads during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

Drywall Screw F270 & F280 Recess Punches

Precision recess-forming tools for drywall screw production.

Definition and Functions

A drywall screw recess punch forms the drive recess that engages the screwdriver bit during installation. For Phillips-type drywall screws, the working tip produces the required cross-recess profile.

Main functions include:

  • Forming the specified drive recess.

  • Controlling recess size, depth and position.

  • Helping maintain consistent driver fit during production.

F270 and F280 are treated as product model references. Their profiles, dimensions and differences must be confirmed against the corresponding drawings.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Available Sizes and Specifications

Punch dimensions are made according to the approved drawing and machine requirements.

Item Specification Details
Product model F270 or F280, according to the confirmed drawing
Dimension system Metric and inch tooling specifications
Punch body diameter (D) According to the model and punch holder requirements
Overall length (L) Specified in millimeters or inches
Recess profile Drive type, size and forming geometry
Working tip Projection and profile according to the approved drawing
Tolerances Confirmed during specification review

For complete header punch configurations, body diameter options may include Ø12, Ø14, Ø18 and Ø23 mm, subject to model and machine compatibility. Separate recess-pin dimensions must be specified independently.

Special diameters, lengths, recess profiles and other requirements are subject to discussion and technical review.

Available Options

  • F270 and F280 configurations according to confirmed drawings.

  • Separate recess-forming pins or complete header punches, subject to tooling design.

  • Drywall screw bugle-head forming profiles when supplied as a complete header punch.

  • Material and coating options to suit production requirements.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your F270 or F280 reference drawing, screw drawing, required punch dimensions, wire material and order quantity for review and quotation.
