Phillips Combination Header Punch

GXP Click here

Phillips combination(+/-) header punches form screw heads with a combined Phillips cross recess and straight slot during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

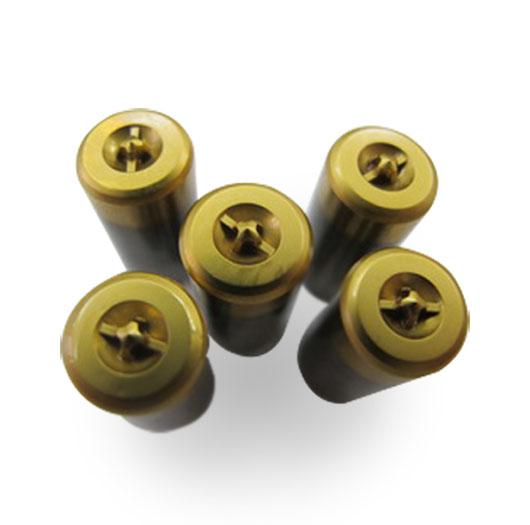

Phillips Combination Header Punch TiN Coated

Precision forming tools for Phillips and slotted combination screw heads.

Definition and Functions

A Phillips combination header punch forms a screw head with both a Phillips cross recess and a straight slot. The finished drive allows engagement with a matching Phillips driver or flat-blade screwdriver.

Main functions include:

  • Forming the specified screw head profile.

  • Producing the combined cross recess and straight slot.

  • Controlling recess dimensions, depth and position.

  • Helping maintain consistent driver fit during production.

The combination profile must be confirmed by drawing, including the cross-recess geometry, slot width and forming depth.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Available Sizes and Specifications

Punch body diameter options (D) and length:

Metric Inch
Ø12 mm x 25L Ø11.11 x 25.4L
Ø14 mm x 25L Ø14.28 x 25.4L
Ø18 mm x 25L Ø22.22 x 25.4L
Ø23 mm x 25L Ø25.40 x 25.4L

Item Specification Details
Dimension system Metric and inch tooling specifications available
Overall length (L) According to the customer drawing, specified in millimeters or inches
Head profile Head style, diameter, height and forming geometry
Phillips recess Recess size, profile and depth
Straight slot Slot width, depth and orientation relative to the cross recess
Mounting dimensions According to the heading machine and punch holder
Tolerances According to the approved drawing

Special diameters, lengths, head profiles and combination recess designs are subject to discussion and technical review.

Available Options

  • Phillips and slotted combination drive profiles.

  • Pan, countersunk, truss and custom head profiles, subject to drawing review.

  • Custom tooling dimensions for different heading machines.

  • Material and coating options to suit production requirements.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your screw and punch drawings, head style, combination recess dimensions, required punch diameter and length, wire material and order quantity for review and quotation.
