ISO 7380 Hexagon Punch

GXP Click here

ISO 7380 hexagon punches form the internal hexagon socket of button head screws during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

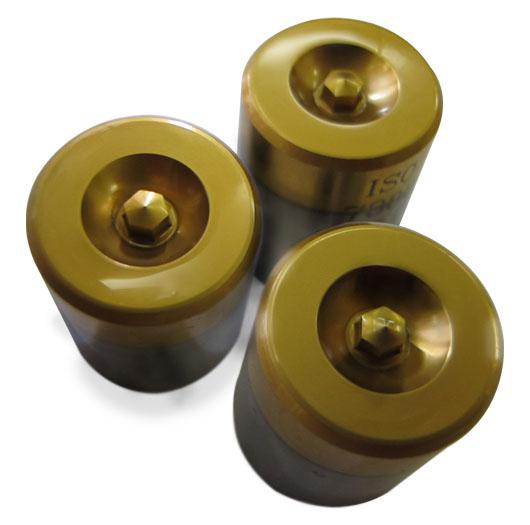

ISO 7380 Hexagon Punch TiN Coated

Precision forming tools for hexagon socket button head screws.

Definition and Functions

An ISO 7380 hexagon punch forms the internal drive recess that engages a matching hex key or driver bit.

Main functions include:

  • Forming the specified hexagon socket profile.

  • Controlling socket size, depth and position.

  • Helping maintain consistent driver fit during production.

  • Forming the button head profile when supplied as a complete header punch.

ISO 7380 identifies the screw specification. Punch dimensions are confirmed separately according to the approved tooling drawing.

Materials and Coatings

Material Key Characteristics
M2 HSS Balanced toughness and wear resistance.
M42 HSS High hardness and resistance to softening at elevated temperatures.

TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.

Available Sizes and Specifications

Punch Body Diameter (D)

Size Series Available Diameters — D (mm)
Metric Ø12, Ø14, Ø18, Ø23
Inch Ø11.11, Ø14.28, Ø22.22, Ø25.40

Overall Length (L)

Item Available Lengths
Overall length (L) 25 mm or 25.4 mm

Diameter and length combinations are subject to drawing and machine compatibility review.

Forming Specifications

Item Specification Details
Hexagon profile Socket width across flats, corner geometry and forming depth
Head profile Button head geometry when supplied as a complete header punch
Working tip Profile and projection according to the approved drawing
Mounting dimensions According to the heading machine and punch holder
Tolerances According to the approved drawing

Special diameters, lengths, head profiles and recess dimensions are subject to discussion and technical review.

Available Options

  • Hexagon recess-forming pins or complete header punches.

  • Button head-forming profiles according to the screw drawing.

  • Custom tooling dimensions for different heading machines.

  • Material and coating options to suit production requirements.

The body sizes listed above apply to header punch configurations. Separate recess-pin dimensions require confirmation.

Please specify the applicable ISO 7380 part and edition, including whether a collar is required.

Manufacturing and Sales

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

Request a Quote

Send GXP your screw and punch drawings, hexagon socket dimensions, required body diameter and overall length, wire material and order quantity for review and quotation.
