JMF M3.9 T15 six-lobe header punches form the screw head and T15 drive recess during cold heading. Manufactured by JD in Taiwan and supplied through GXP, each punch is specified according to the screw drawing and heading machine requirements.

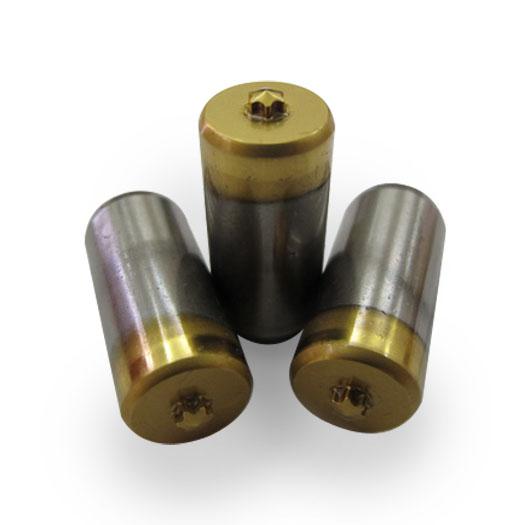

6 Lobe Header Punch — JMF M3.9 T15 D12 x 25L TiN Coated
Precision header punches for M3.9 screws with a T15 six-lobe drive recess.
Definition and Functions
A six-lobe header punch forms the screw head profile and internal drive recess. The finished recess engages a matching T15 driver bit to transmit torque during fastening.
Main functions include:
-
Forming the specified screw head profile.
-
Producing the T15 six-lobe recess.
-
Controlling recess depth and position.
-
Helping maintain consistent head geometry and driver fit.
JMF is retained as the product designation. The M3.9 screw dimensions, head profile and T15 recess geometry must be confirmed against the approved drawing.
Materials and Coatings
| Material | Key Characteristics |
|---|---|
| M2 HSS | Balanced toughness and wear resistance. |
| M42 HSS | High hardness and resistance to softening at elevated temperatures. |
TiN or TiAlN coatings may be specified according to the application. Material, heat treatment and coating selection depend on the screw wire material and forming conditions.
Available Sizes and Specifications
Punch Body Diameter (D)
| Size Series | Available Diameters — D (mm) |
|---|---|
| Metric | Ø12, Ø14, Ø18, Ø23 |
| Inch | Ø11.11, Ø14.28, Ø22.22, Ø25.40 |
Overall Length (L)
| Item | Available Lengths |
|---|---|
| Overall length (L) | 25 mm or 25.4 mm |
Diameter and length combinations are subject to drawing and machine compatibility review.
Forming Specifications
| Item | Specification Details |
|---|---|
| Product designation | JMF M3.9 T15 |
| Screw size reference | M3.9; thread form and dimensions according to the screw drawing |
| Drive recess | T15 six-lobe profile |
| Head geometry | Head diameter, height and profile according to the approved drawing |
| Working tip | Forming geometry and projection according to the tooling drawing |
| Recess depth | According to the screw drawing |
| Mounting dimensions | According to the heading machine and punch holder |
| Tolerances | According to the approved drawing |
Special diameters, lengths, head profiles and recess requirements are subject to discussion and technical review.
Available Options
-
JMF head profile according to the confirmed drawing.
-
Custom punch body and mounting dimensions.
-
Material and coating options to suit production requirements.
-
Other screw sizes and six-lobe recess sizes, subject to technical review.
Manufacturing and Sales
JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.
Request a Quote
Send GXP your JMF M3.9 T15 screw and punch drawings, required body diameter and overall length, wire material and order quantity for review and quotation.
