Former Punches & Multi-Die Punches

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies custom punches for cold forming and fastener production. Each punch is manufactured to the required working profile, mounting dimensions and forming station specifications.

Product Definition and Function
Former Punch A tool used in a forming machine to shape a workpiece through pressure. Its profile determines the geometry formed at that operation.
Multi-Die Punch A punch used at a specific station in a multi-die former, where the workpiece is progressively formed through several operations.
Punch A general term for tools used to form profiles, pierce holes or eject parts, depending on the design and application.

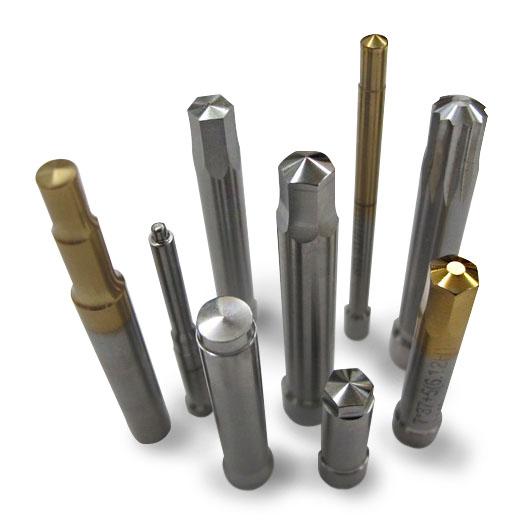

Options include forming, piercing, knockout, hexagonal, six-lobe and 12-point punches.

Materials and Surface Treatments

  • Material options: SKH-9, M2, SKH-55, M42, SKH-59 and ASP-30.

  • Surface options: Uncoated, TiN, TiAlN or customized treatment.

Material and coating selection should consider the workpiece material, forming load, wear conditions and punch geometry.

Ordering Information

For an accurate quotation, please provide:

  • Punch drawing with dimensions, tolerances and working profile.

  • Machine model, forming station and mounting dimensions.

  • Workpiece drawing, material and forming operation.

  • Required punch material, coating and quantity.

  • Existing tool problems, such as wear or breakage, if applicable.

Item Reference Information
Minimum order quantity 10 pieces
Lead time Approx. 20-25 working days after order confirmation; confirm when ordering
Packaging Plastic bags
Custom specifications Subject to drawing review

FAQ

1. Can punches be manufactured to customer drawings?
Yes. Provide a detailed drawing for specification review and quotation.

2. Can the same punch be used at different stations?
Compatibility depends on the working profile, mounting dimensions and forming sequence. Confirm the station requirements before ordering.

3. Which punch material should I choose?
Selection depends on the workpiece material, forming load and required balance of wear resistance and toughness.

4. Are coated punches available?
Yes. Options include TiN, TiAlN and customized treatments, subject to application review.

5. What is needed to order a replacement punch?
Provide the tool drawing, machine model, station number and required quantity. Include details of any existing production issues.

6. What affects punch life?
Material selection, tool alignment, lubrication, forming load and machine condition all affect service life.

Request a Quote

Send your drawings, machine specifications and required quantity to GXP for review and quotation.
