Twelve-Point Punches

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies custom twelve-point punches for fastener production. Working profiles, dimensions and mounting details are manufactured according to approved drawings and machine requirements.

Definition and Function

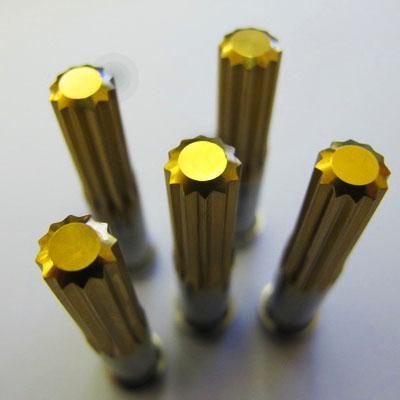

A twelve-point punch is a forming tool with a twelve-point working profile. It forms the corresponding geometry in a workpiece during the specified production operation.

The exact profile, forming depth and application must be confirmed by drawing. The term “twelve-point” alone does not define a specific drive standard or guarantee compatibility with a mating tool.

Materials and Surface Treatments

Item Available Options
Materials SKH-9, M2, SKH-55, M42, SKH-59 and ASP-30
Surface treatments Uncoated, TiN, TiAlN or customized treatment
Custom specifications Subject to drawing and application review

Material and coating selection should consider forming load, workpiece material, lubrication and existing wear or breakage problems.

Ordering Information

Please provide:

  • Punch drawing with profile dimensions, tolerances and forming depth.

  • Overall length, shank diameter and mounting details.

  • Machine model and forming station.

  • Workpiece drawing, material and hardness.

  • Required punch material, coating and quantity.

  • Applicable profile standard or mating gauge details, if required.

Minimum order quantity: 10 pieces.
Reference lead time: 20-25 working days after order confirmation, subject to quotation.
Packaging: Plastic bags.

FAQ

1. Can twelve-point punches be customized?
Yes. Submit a detailed drawing for specification review and quotation.

2. Are all twelve-point profiles interchangeable?
No. Profile geometry, dimensions and tolerances must match the specified application.

3. How do I select the material?
Provide the workpiece material, forming conditions and current tool performance for review.

4. Are coatings available?
Yes. Options include TiN, TiAlN and customized treatments, subject to application review.

5. What is needed for a replacement order?
Provide the existing punch drawing, machine details and required quantity. Include inspection requirements where applicable.

6. What affects punch life?
Alignment, lubrication, forming load, tool geometry and material selection all affect service life.

Request a Quote

Send your twelve-point profile drawing, machine specifications and required quantity to GXP for review and quotation.
