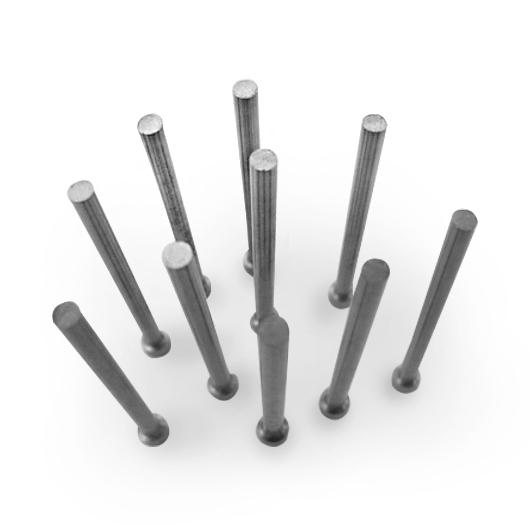

GXP supplies precision knockout (K.O.) pins and ejector pins for screw, bolt and fastener manufacturing.
These pins are used to eject formed parts from dies after cold heading or forging, helping maintain smooth production and reduce part damage.
Standard and customized pins are available according to customer drawings, machine specifications and production requirements.
K.O. Pins & Ejectors
K.O. Pins (Knockout Pins) and Ejector Pins are precision tooling components used to remove formed workpieces from dies during cold heading and forging operations.
Main Functions:
-
Eject finished or partially formed parts from dies.
-
Support smooth and consistent production cycles.
-
Reduce sticking and potential workpiece damage.
-
Provide reliable ejection for screws, bolts and other fasteners.
Available Types:
|
Product Type |
Main Function |
|---|---|
|
K.O. Pin with Head |
Provides controlled ejection with a headed pin design |
|
K.O. Pin without Head |
Used for ejection in compatible die assemblies |
|
K.O. Pin with 60° Head |
Designed for specific seating and ejection requirements |
|
Ejector Pin |
Pushes formed workpieces out of dies |
|
Customized K.O. Pin |
Special dimensions or profiles for specific applications |
Materials
Materials are selected according to forming conditions, wear resistance and production requirements.
|
Material |
Features |
|---|---|
|
M2 High-Speed Steel |
Good toughness and wear resistance for general applications |
|
M42 High-Speed Steel |
High hardness and wear resistance for demanding applications |
|
H-9 Tool Steel |
Good hot hardness and toughness for suitable tooling applications |
|
SKH-59 High-Speed Steel |
High wear resistance for precision tooling applications |
Surface Treatments
-
Plain (Uncoated)
-
TiN Coating
-
TiAlN Coating
Material grades and coatings are selected according to application requirements.
Sizes & Customization
GXP supplies standard and custom K.O. pins and ejectors based on customer specifications.
Customization Options:
-
Pin diameter and overall length
-
Head diameter and head profile
-
Shank and tip dimensions
-
Material and coating selection
-
Dimensional tolerances
-
Special designs according to drawings or samples
Custom specifications are subject to technical review.
Ordering Information
Please provide the following information for quotation:
-
Product Type: K.O. Pin or Ejector Pin
-
Dimensions: Diameter, length, head size and tolerances
-
Material: M2, M42, H-9, SKH-59 or specified grade
-
Surface Treatment: Plain, TiN or TiAlN
-
Machine Type: Cold heading or forging machine model
-
Drawings or Samples: Recommended for accurate quotation
-
Order Quantity: Required quantity
Frequently Asked Questions
What is a K.O. Pin?
A K.O. Pin (Knockout Pin) is used to eject formed screws, bolts or other components from a die after cold heading or forging.
What is the difference between a K.O. Pin and an Ejector Pin?
Both are used for part ejection. K.O. Pins are commonly used in cold heading machines, while Ejector Pins are a broader category of tooling for removing formed parts.
What materials are available?
Available material options include M2, M42, H-9 and SKH-59, depending on application requirements.
What surface treatments are available?
Plain, TiN and TiAlN coatings are available for different production conditions.
Can K.O. Pins and Ejector Pins be customized?
Yes. Custom dimensions, head profiles and special designs can be reviewed according to customer drawings or samples.
How do I select the correct K.O. Pin?
Selection depends on machine type, die design, pin dimensions, workpiece material and ejection conditions.
What information is required for quotation?
Please provide dimensions, material, coating, machine model, required quantity and drawings or samples.
Are these pins suitable for screw and bolt production?
Yes. K.O. Pins and Ejector Pins are commonly used in cold heading and forging processes for screws, bolts and other fasteners.
Looking for Precision K.O. Pins or Ejector Pins?
GXP supplies precision knockout pins and ejector pins for cold heading and forging applications.
Send us your drawings, specifications or samples for technical review and quotation.
