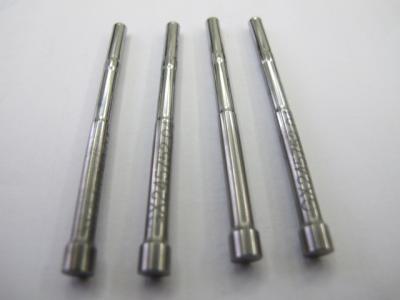

Carbide Pin, Carbide Extrusion Pin

GXP Click here

GXP supplies precision carbide pins and carbide extrusion pins for screw, bolt and fastener manufacturing.

These pins are used for metal forming, extrusion, piercing and ejection in cold heading and forging processes.

Tungsten carbide provides high hardness, wear resistance and dimensional stability for demanding production applications.

Custom sizes and designs are available according to customer drawings and machine requirements.

Carbide Pin & Carbide Extrusion Pin

Carbide Pin

A carbide pin is a precision tooling component made from tungsten carbide. It is used for forming, positioning or ejecting metal components during cold heading and forging operations.

Carbide Extrusion Pin

A carbide extrusion pin is used to shape metal by applying pressure during cold extrusion. It helps form internal holes, cavities and special profiles in screws, bolts and other metal components.

Main Functions

  • Form internal holes, cavities and special profiles.

  • Support cold extrusion and forging operations.

  • Provide high wear resistance under demanding forming conditions.

  • Maintain dimensional accuracy during repeated production cycles.

  • Support stable production of screws, bolts and precision fasteners.

Materials

Material

Features & Applications

Tungsten Carbide (WC-Co)

High hardness, wear resistance and dimensional stability for cold forging and extrusion applications

Carbide grade, hardness and cobalt content are selected according to forming pressure, workpiece material and tooling requirements.

Available Types & Customization

GXP supplies standard and customized carbide pins for different forming applications.

Available Types:

  • Carbide Forming Pins

  • Carbide Extrusion Pins

  • Carbide Forging Pins

  • Carbide Piercing Pins

  • Carbide Ejector Pins

  • Customized Carbide Pins

Customization Options:

  • Pin diameter and overall length

  • Head, shank and tip dimensions

  • Extrusion and forming profiles

  • Carbide grade and hardness

  • Dimensional tolerances and surface finish

  • Special designs according to customer drawings or samples

Custom specifications are subject to technical review.

Ordering Information

Please provide the following information for quotation:

  1. Product Type: Carbide Pin or Carbide Extrusion Pin

  2. Dimensions: Diameter, length, head size and tolerances

  3. Material: Tungsten carbide grade or application requirements

  4. Machine Type: Cold heading or forging machine model

  5. Application: Screw, bolt, fastener or other formed component

  6. Drawings or Samples: Recommended for accurate quotation

  7. Order Quantity: Required quantity

Frequently Asked Questions

What is a Carbide Pin?

A carbide pin is a precision tooling component made from tungsten carbide, used for forming, positioning or ejecting metal parts during cold heading and forging.

What is a Carbide Extrusion Pin?

A carbide extrusion pin is used to form internal holes, cavities and special profiles in metal components through cold extrusion.

What material is used for carbide pins?

Tungsten carbide is commonly used for its high hardness, wear resistance and dimensional stability.

What are the advantages of carbide pins?

Carbide pins provide excellent wear resistance and dimensional stability, making them suitable for demanding forming applications.

Can carbide pins be customized?

Yes. Custom diameters, lengths, forming profiles and tolerances can be reviewed according to customer drawings or samples.

Are carbide extrusion pins suitable for screw and bolt production?

Yes. They are used in cold heading and extrusion processes for screws, bolts and other precision fasteners.

How do I select the correct carbide grade?

Carbide grade selection depends on forming pressure, workpiece material, tool geometry and required wear resistance.

What information is required for quotation?

Please provide dimensions, material requirements, machine type, application, quantity and drawings or samples.

Looking for Carbide Pins or Carbide Extrusion Pins?

GXP supplies precision carbide pins for cold heading, extrusion and forging applications.

Send us your drawings, specifications or samples for technical review and quotation.
