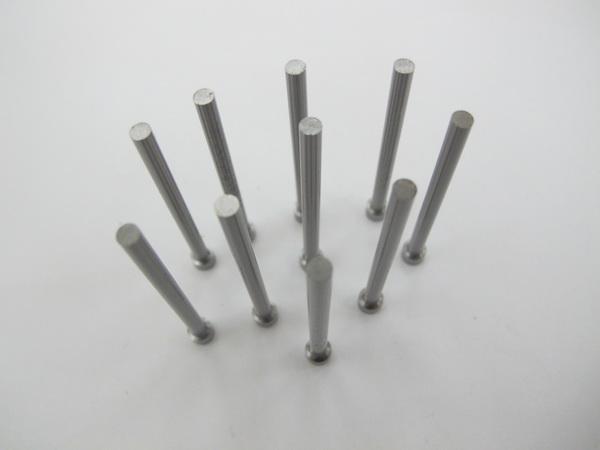

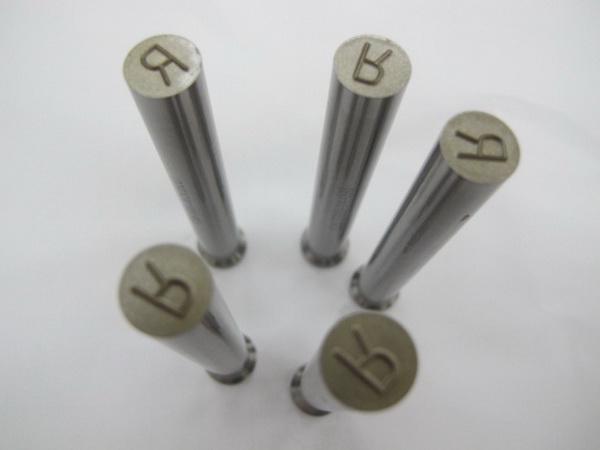

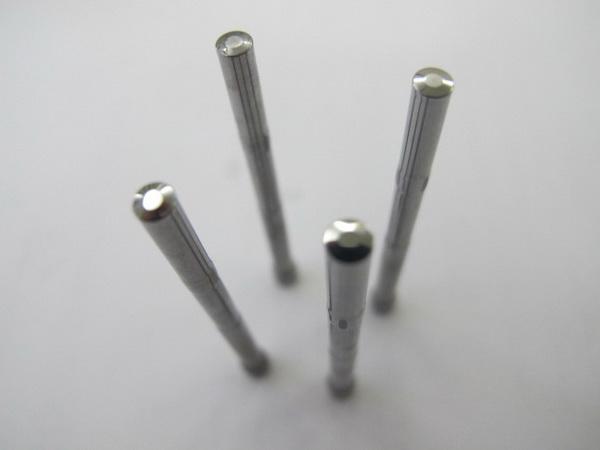

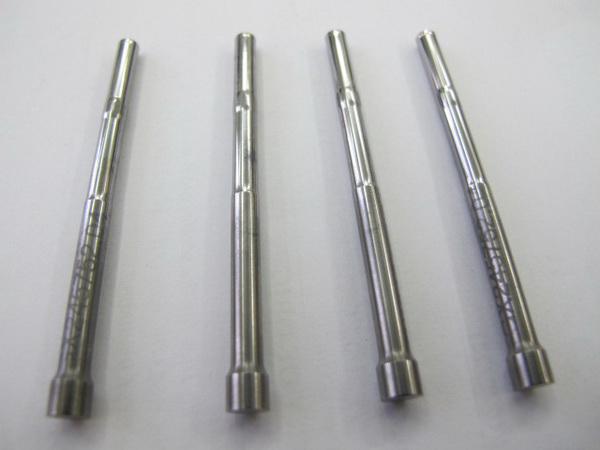

Cold Forging Pin & Extrusion Pin

GXP Click here

GXP supplies precision cold forging pins and extrusion pins for screw, bolt and fastener manufacturing.

These pins are used to form holes, cavities and special profiles during cold heading, forging and extrusion processes.

Available in M2, M42, H-9 and SKH-59 materials, with optional surface coatings.

Custom sizes and designs are available according to customer drawings and production requirements.

Cold Forging Pin

A Cold Forging Pin is a precision forming tool used to shape metal components under high pressure during cold forging.

It helps form internal holes, recesses and special profiles in screws, bolts and other fasteners.

Extrusion Pin

An Extrusion Pin is used in cold extrusion processes to form internal cavities, holes and specific geometries by controlling metal flow under pressure.

Main Functions

  • Form holes, cavities and internal profiles.

  • Support cold heading and extrusion operations.

  • Maintain dimensional accuracy during repeated forming cycles.

  • Provide wear resistance under high forming pressure.

  • Support stable production of screws, bolts and precision fasteners.

Materials

Materials are selected according to forming pressure, workpiece material and production requirements.

Material

Features & Applications

M2 High-Speed Steel

Balanced toughness and wear resistance for general cold forming applications

M42 High-Speed Steel

High hardness and wear resistance for demanding forming conditions

H-9 Tool Steel

Good toughness and resistance to thermal softening for suitable forging applications

SKH-59 High-Speed Steel

High hardness and wear resistance for precision forming tools

Surface Treatments

  • Plain (Uncoated)

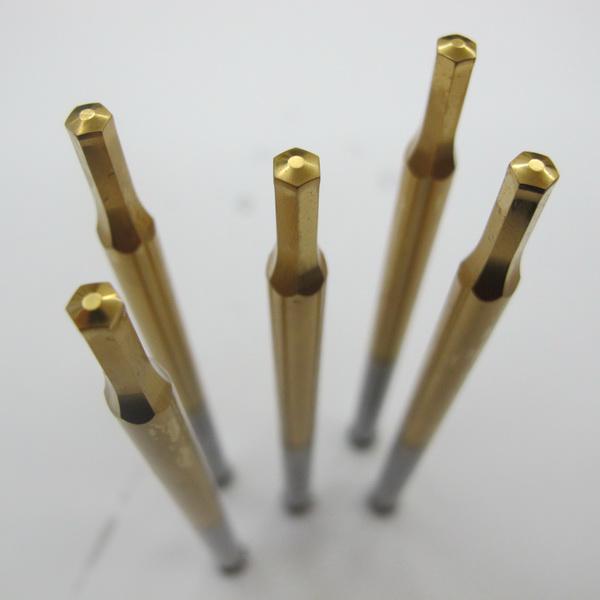

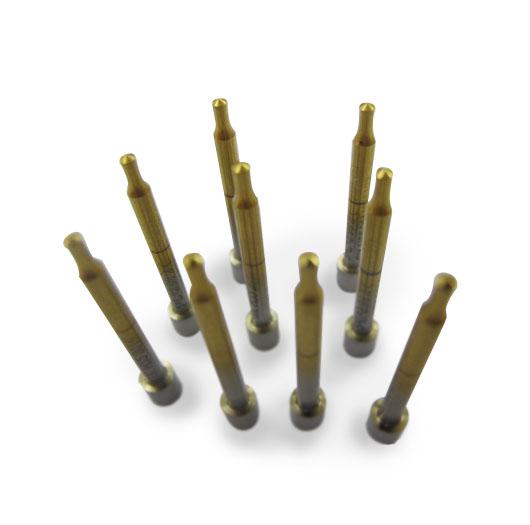

  • TiN Coating

  • TiAlN Coating

Material grades, hardness and coatings are selected according to application requirements.

Available Types & Customization

GXP supplies standard and customized cold forging pins and extrusion pins for different forming applications.

Available Types:

  • Cold Forging Pins

  • Extrusion Pins

  • Piercing Pins

  • Round Forming Pins

  • Special Profile Pins

  • Customized Forging Pins

Customization Options:

  • Pin diameter and overall length

  • Head, shank and tip dimensions

  • Extrusion and forming profiles

  • Material and surface coating

  • Dimensional tolerances and surface finish

  • Special designs according to customer drawings or samples

Custom specifications are subject to technical review.

Ordering Information

Please provide the following information for quotation:

  1. Product Type: Cold Forging Pin or Extrusion Pin

  2. Dimensions: Diameter, overall length, tip dimensions and tolerances

  3. Material: M2, M42, H-9 or SKH-59

  4. Surface Treatment: Plain, TiN or TiAlN

  5. Machine Type: Cold heading or forging machine model

  6. Application: Screw, bolt or other formed component

  7. Drawings or Samples: Recommended for accurate quotation

  8. Order Quantity: Required quantity

Frequently Asked Questions

What is a Cold Forging Pin?

A Cold Forging Pin is a precision tool used to form holes, recesses and special profiles in metal components during cold forging.

What is an Extrusion Pin?

An Extrusion Pin is used to form internal cavities and specific shapes by controlling metal flow during cold extrusion.

What is the difference between a Cold Forging Pin and an Extrusion Pin?

Cold Forging Pins are used for general metal forming, while Extrusion Pins are specifically designed for extrusion operations that control material flow.

What materials are available?

Available materials include M2, M42, H-9 and SKH-59, depending on forming requirements.

What surface treatments are available?

Plain, TiN and TiAlN coatings are available according to production requirements.

Can Cold Forging Pins and Extrusion Pins be customized?

Yes. Custom dimensions, profiles and tolerances are available according to customer drawings or samples.

Are these pins suitable for screw and bolt production?

Yes. They are commonly used in cold heading, forging and extrusion processes for screws, bolts and other fasteners.

How do I select the correct pin material?

Material selection depends on forming pressure, workpiece material, tool geometry, wear conditions and required tool life.

What is the minimum order quantity?

The listed minimum order quantity is 50 pieces, subject to order confirmation.

What information is required for quotation?

Please provide dimensions, material, coating, machine type, application, quantity and drawings or samples.

Looking for Cold Forging Pins or Extrusion Pins?

GXP supplies precision forming pins for cold heading, forging and extrusion applications.

Send us your drawings, specifications or samples for technical review and quotation.
