MIT Premium Tungsten Carbide Insert

GXP Click here

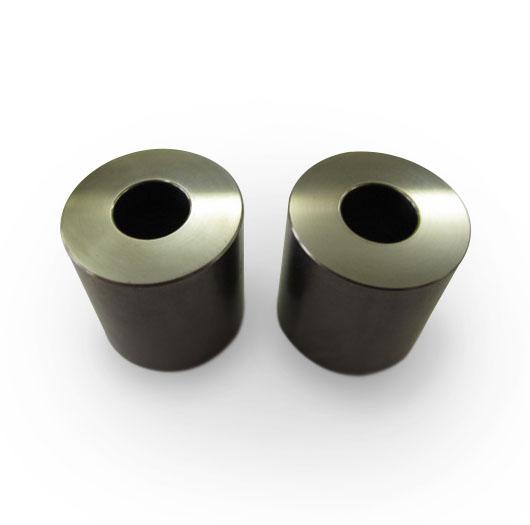

Made-in-Taiwan (MIT) tungsten carbide inserts are wear-resistant components used inside forming die cases. They shape and support metal blanks during cold heading, extrusion and fastener production.Custom profiles and material grades are selected according to the part drawing, wire material and forming requirements.

MIT Premium Tungsten Carbide Inserts

A tungsten carbide insert is the inner working component of a carbide-inserted die. Its bore or cavity directly contacts the workpiece and controls the required forming profile.

In fastener tooling, it may also be called a carbide die core or die nib, depending on its design and condition of supply.

Main functions:

  • Form the specified bore or cavity profile.

  • Guide material flow during forming.

  • Withstand high compressive loads.

  • Help maintain consistent part dimensions.

Materials and Construction

Component Typical Material Function
Working insert Cemented tungsten carbide, commonly with a cobalt binder Provides wear resistance and compressive strength
Supporting case Heat-treated alloy steel or tool steel Holds and supports the insert

Cemented tungsten carbide combines hard carbide particles with a metallic binder. Grade selection balances wear resistance and toughness for the intended application.

Applications and Custom Options

Typical applications:

  • Screw and bolt heading dies.

  • Shank sizing and cold extrusion dies.

  • Special-profile fastener forming tools.

Custom options:

  • Straight or stepped bores.

  • Special forming cavities and profiles.

  • One-piece or multi-section designs.

  • Drawing-defined dimensions, tolerances and surface finishes.

Information Required for a Quote

Please provide:

  • Part and insert drawings.

  • Wire material and diameter.

  • Insert dimensions and die case details.

  • Forming stage and required tolerances.

  • Reference samples, if available.

FAQ

What does MIT mean?

MIT means Made in Taiwan.

Is this the same as a cutting insert?

No. This product is a forming die insert used to shape metal blanks, rather than a cutting insert for turning or milling.

Why use tungsten carbide?

Tungsten carbide provides high wear resistance and compressive strength, helping maintain the working profile during repeated forming.

Which carbide grade should be selected?

The suitable grade depends on the workpiece material, forming load and insert geometry. Higher hardness does not always mean longer service life.

Can the insert be replaced?

Replacement may be possible if the die design permits it and the case remains suitable for reuse. Case condition and insert fit must be inspected first.

Can inserts be made to custom drawings?

Yes. Dimensions, profiles and material grades can be reviewed according to your drawings and production requirements.

Request a Quote

Send your drawings, wire specifications and die case details for a review of the insert design and material.
