Thread Rolling Dies for B-PPT Type Screw Threads

GXP Click here

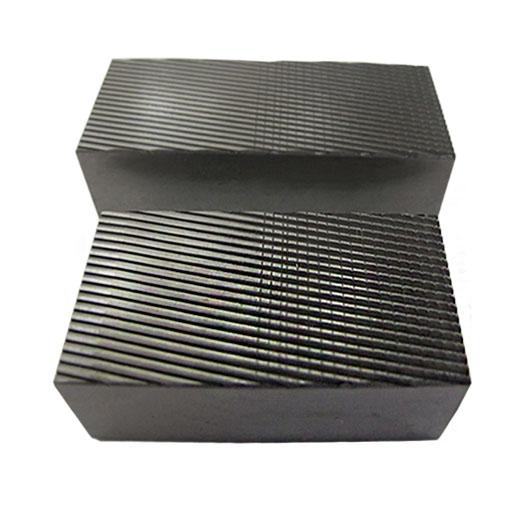

GXP supplies flat thread rolling dies for B-PPT type screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

B-PPT type thread rolling dies are forming tools used to produce the specified external thread profile on screw blanks. Pressure between the die plates displaces the blank material to form the threads.

Main functions:

  • Form the required thread profile, pitch and diameter.
  • Control threaded length and thread runout.
  • Match die dimensions to the specified rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

The website uses “B-PPT” as a product designation without defining its thread geometry or application. Confirm the profile, point design and tolerances using an approved drawing.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel  for carbon steel used
DC-53 Cold-work tool steel  for  carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
B-PPT thread profile Drawing or applicable specification, pitch, thread angle, root and crest geometry, and tolerances
Threaded length Full or partial thread, unthreaded shank length and runout
Point design Point shape, dimensions and any point-forming requirements
Blank specifications Material grade, hardness before rolling, blank diameter and length
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are B-PPT type thread rolling dies used for?
They form external screw threads according to the specified B-PPT profile and approved drawing.

2. Is the B-PPT designation sufficient for ordering?
A detailed drawing or applicable specification is required to confirm thread geometry, dimensions and tolerances.

3. Are B-PPT and PT type dies interchangeable?
Interchangeability must be confirmed through drawing review. Similar product names do not establish identical thread or point geometry.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade depends on the blank and production requirements.

5. How many dies are supplied per set?
Each set contains two pieces: one stationary die and one moving die.

6. Can the dies be customized for my machine?
Custom specifications can be reviewed. Provide the machine model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Inspect thread diameter, pitch, profile, threaded length and point geometry against the approved drawing. Check for incomplete threads, laps and surface damage. Include assembly tests where required by the application.

Request a Quotation

Send GXP your B-PPT screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
