Thread Rolling Dies for PT Type Screw Threads

GXP Click here

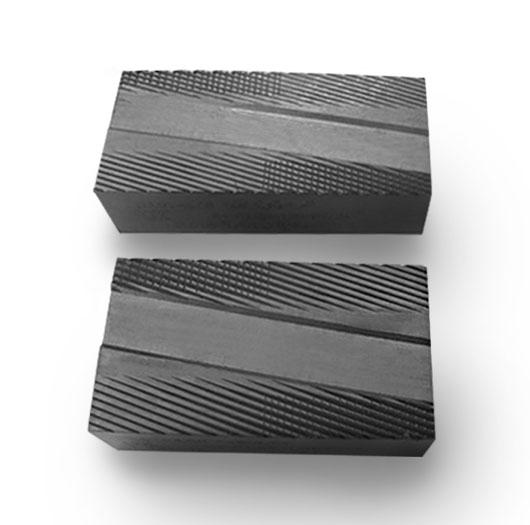

GXP supplies flat thread rolling dies for PT type screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

PT type screw thread rolling dies are forming tools used to produce the specified external thread profile on screw blanks. Pressure between the die plates displaces the blank material to form the threads.

Main functions:

  • Form the required thread profile, pitch and diameter.
  • Control threaded length and thread runout.
  • Match die dimensions to the specified rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

The website identifies this product as “PT type screw” without defining its thread geometry or application. Specify the required thread angle, cross-section and point design on the drawing before tooling approval.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel for carbon steel used
DC-53 Cold-work tool steel for carbon steel used
SKH-9 High-speed tool steel for stainless steel used
M2 High-speed tool steel for stainless steel used

Material selection should consider blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
PT thread profile Detailed drawing, pitch, thread angle, cross-section, root and crest geometry, and tolerances
Threaded length Full or partial thread, unthreaded shank length and runout
Point design Point shape, dimensions and any point-forming requirements
Blank specifications Material grade, hardness before rolling, blank diameter and length
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are PT type screw thread rolling dies used for?
They form external threads on screw blanks according to the specified PT screw profile and approved drawing.

2. Is the PT designation sufficient for ordering?
A detailed drawing or applicable specification is needed to confirm the exact thread geometry, dimensions and tolerances.

3. Are these dies suitable for screws used in plastics?
Provide the required screw profile and intended plastic material for review. The product page does not specify a plastic application or particular PT geometry.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade depends on the blank and production requirements.

5. How many dies are supplied per set?
Each set contains two pieces: one stationary die and one moving die.

6. Can the dies be customized for my machine?
Custom specifications can be reviewed. Provide the machine manufacturer, model and dimensions of both existing die plates.

7. What should be checked during trial production?
Inspect thread diameter, pitch, profile, threaded length and point geometry against the approved drawing. Where required, verify installation torque, stripping torque and retention performance in the specified mating material.

Request a Quotation

Send GXP your PT screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
