Thread Rolling Dies for Custom Taptite Extrude End Screws

GXP Click here

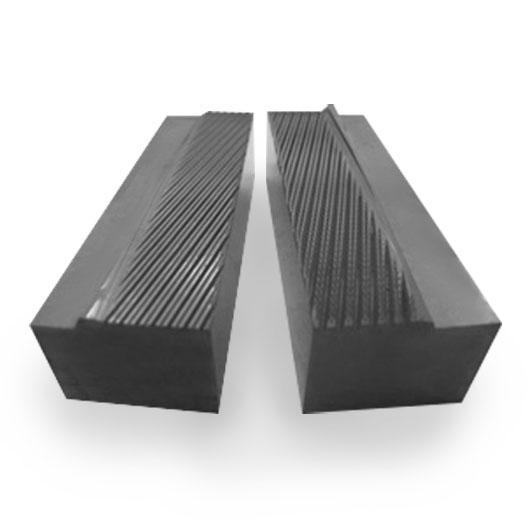

GXP supplies flat thread rolling dies for custom taptite extrude end screw production. Each matched set includes one stationary die and one moving die. Custom specifications are reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

These dies are forming tools used to create external threads on screw blanks with a custom end design. Pressure between the die plates displaces the blank material into the required thread profile.

Main functions:

  • Form the specified thread diameter, pitch and profile.
  • Control threaded length and the thread transition toward the end.
  • Accommodate the specified screw cross-section, subject to technical review.
  • Fit the die mounting dimensions of the selected rolling machine.

“Extrude end” must be defined by the drawing. The website does not specify the end geometry or confirm whether the end is formed during rolling or prepared beforehand.

Die Materials

The product page lists these material options.

Material Material Type
SKD-11 Cold-work tool steel  for carbon steel used
DC-53 Cold-work tool steel  for  carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for  stainless steel used

Select the die material according to blank material, hardness, forming requirements and production conditions. Confirm heat treatment and any surface treatment during quotation.

Ordering Information

Item Required Information
Finished screw Detailed drawing, tolerances and revision number
Thread profile Diameter, pitch, thread angle, root and crest geometry
Threaded section Threaded length, runout and thread coverage at the end
Cross-section Required shape and inspection dimensions
Custom end End diameter, length, taper, radii and tip geometry
Starting blank Material grade, hardness, dimensions and end condition before rolling
Head dimensions Head style, diameter and height
Machine and dies Machine manufacturer, model, dimensions of both die plates and mounting details
Purchase requirements Quantity in matched sets, inspection criteria and requested delivery date

FAQ

1. What are these dies used for?
They form external threads on custom screw blanks according to the approved thread profile and end design.

2. What does “extrude end” mean?
It is part of the product designation. The exact end shape and dimensions must be specified on the drawing.

3. Can the threads and custom end be formed together?
This depends on the blank geometry, finished screw design and machine capability. Provide both blank and finished screw drawings for review.

4. Can the dies produce a lobular profile?
Submit the required cross-section and tolerances for feasibility review before ordering.

5. Which materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Material suitability depends on the production requirements.

6. How many dies are supplied per set?
Each set contains two pieces: one stationary die and one moving die.

7. What should be checked during trial production?
Inspect thread dimensions, cross-section, threaded length, end geometry and surface condition. Verify installation and retention performance where required by the application.

Request a Quotation

Send GXP your finished screw drawing, blank drawing, material specifications and machine details for technical review and quotation.
