Thread Rolling Dies for Type B Screw Threads

GXP Click here

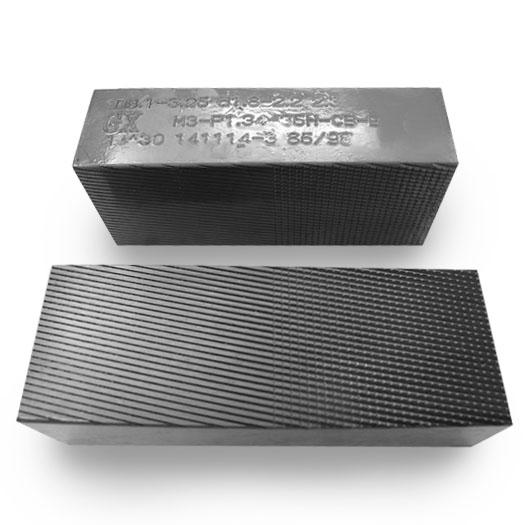

GXP supplies flat thread rolling dies for Type B self-tapping screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

Type B thread rolling dies are forming tools used to create external threads on Type B screw blanks. Pressure between the die plates displaces material to form the required thread profile.

Type B tapping screws feature spaced threads and a blunt point with incomplete entering threads. They are used in prepared holes in materials such as thin metal, non-ferrous castings and plastics, depending on the application.

Main tooling functions:

  • Form the specified thread diameter, pitch and profile.
  • Control threaded length and entering thread geometry.
  • Match die dimensions to the specified rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

Point-forming requirements must be reviewed against the starting blank and finished screw drawings.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel   for carbon steel used
DC-53 Cold-work tool steel   for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Select the material according to blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Applicable standard, pitch or TPI, thread profile and tolerances
Threaded length Full or partial thread, including runout requirements
Blunt point Point diameter, taper length and entering thread geometry
Blank specifications Material grade, hardness before rolling, blank diameter and length
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are Type B thread rolling dies used for?
They form external threads on blanks used to manufacture Type B self-tapping screws.

2. What identifies a Type B screw?
A Type B tapping screw has spaced threads and a blunt point with incomplete entering threads.

3. Are Type B and Type AB dies interchangeable?
Do not assume interchangeability. Confirm the thread and point geometry against the required screw drawing before selecting tooling.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Material suitability depends on production requirements.

5. How many dies are included in one set?
Each set contains one stationary die and one moving die.

6. Can the dies fit my existing machine?
Provide the machine manufacturer, model and dimensions of both existing die plates for compatibility review.

7. What should be checked during trial production?
Inspect thread major and minor diameters, pitch, profile, threaded length and blunt-point geometry. Check for incomplete threads, laps and surface damage. Include application tests where required.

Request a Quotation

Send GXP your Type B screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
