Thread Rolling Dies for Type A Screws

GXP Click here

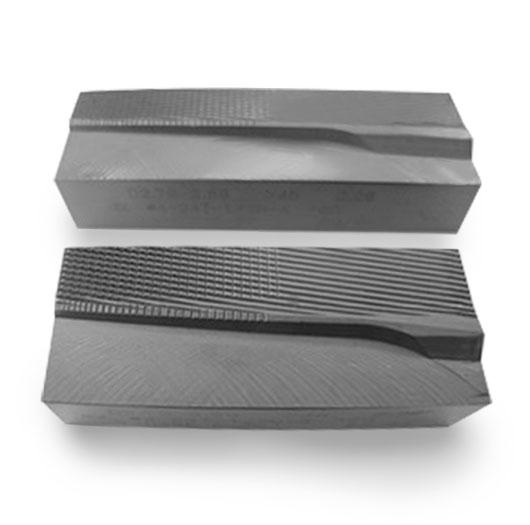

GXP supplies flat thread rolling dies for Type A self-tapping screw production. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

Type A screw thread rolling dies are forming tools that create external threads by pressing and displacing screw blank material between two die plates.

Type A tapping screws feature coarse-spaced threads and a sharp gimlet point. Their threads are more widely spaced than those of Type AB screws.

Main tooling functions:

  • Form the specified thread diameter, pitch and profile.
  • Control threaded length and the thread transition toward the point.
  • Match die dimensions to the selected rolling machine.
  • Support repeatable production with consistent blanks and correct machine settings.

Point-forming capability must be confirmed using both the starting blank and finished screw drawings.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel   for carbon steel used
DC-53 Cold-work tool steel   for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider blank material, hardness, thread geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Applicable standard, pitch or TPI, thread profile and tolerances
Threaded length Full or partial thread, including runout requirements
Point design Point angle, length, tip geometry and thread coverage
Blank specifications Material grade, hardness before rolling, blank diameter, length and point condition
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Purchase requirements Drawing revision, quantity in matched sets, inspection criteria and requested delivery date

FAQ

1. What are Type A screw thread rolling dies used for?
They form external threads on blanks used to manufacture Type A self-tapping screws.

2. What identifies a Type A screw?
A Type A tapping screw has coarse-spaced threads and a sharp gimlet point.

3. Are Type A and Type AB dies interchangeable?
Do not assume interchangeability. Thread spacing and point geometry must match the required screw drawing.

4. Can the dies form the sharp point and threads together?
This requires a feasibility review of the blank geometry, finished point design and machine capability.

5. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. The suitable grade depends on production requirements.

6. How do I confirm machine compatibility?
Provide the machine manufacturer, model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Inspect thread major and minor diameters, pitch, profile, threaded length and point geometry. Check for incomplete threads, laps, burrs and tip damage.

Request a Quotation

Send GXP your Type A screw drawing, blank specifications, machine model and die dimensions for technical review and quotation.
