Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies custom profile punches for fastener and formed component production. Working profiles, mounting dimensions and tolerances follow approved drawings and machine requirements.
Definition and Function

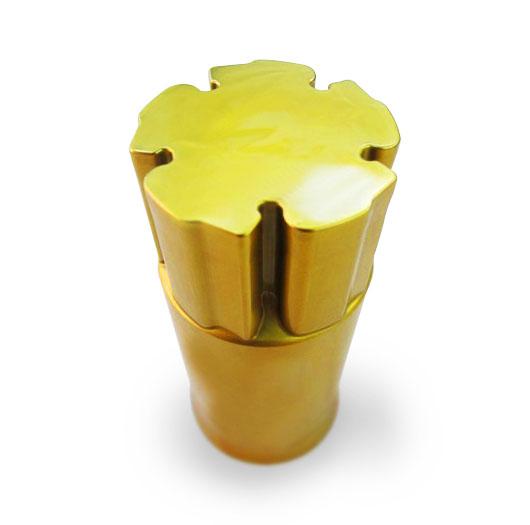

A profile punch is a tool with a working end shaped to produce a specified contour or feature in a workpiece.
Depending on its design, it can form recesses and shaped features or pierce profiled holes. The punch must match the mating die and the required forming or piercing operation.
Materials and Surface Treatments
| Item | Available Options |
|---|---|
| Materials | SKH-9, M2, SKH-55, M42, SKH-59 and ASP-30 |
| Surface treatments | Uncoated, TiN, TiAlN or customized treatment |
| Custom profiles | Subject to drawing and manufacturing review |
Material and coating selection should consider the workpiece material, operating load, lubrication and wear conditions.
Ordering Information
Please provide:
-
Punch drawing with profile dimensions, tolerances and corner radii.
-
Shank diameter, overall length and mounting details.
-
Required profile orientation relative to mounting features.
-
Machine model, station number and operation.
-
Workpiece material, hardness and mating die details.
-
Required punch material, coating and quantity.
Minimum order quantity: 10 pieces.
Reference lead time: 20-25 working days after order confirmation, subject to specification review.
Packaging: Plastic bags.
FAQ
1. Can profile punches be made to custom drawings?
Yes. Submit a detailed drawing for specification review and quotation.
2. What is the difference between forming and piercing profile punches?
A forming punch reshapes material. A piercing punch removes material to create an opening. Their geometry and die requirements differ.
3. Which dimensions are important when ordering?
Specify the working profile, tolerances, corner radii, working length and mounting dimensions. Include orientation requirements for asymmetric profiles.
4. How should I select the material and coating?
Provide production conditions and existing tool performance to support application review.
5. Can I order a replacement punch?
Yes. Provide the existing drawing and confirm compatibility with the machine and mating die.
6. What affects profile accuracy and tool life?
Alignment, die clearance where applicable, lubrication, tool wear and workpiece consistency all affect performance.
Request a Quote
Send your profile punch drawing, workpiece specifications and required quantity to GXP for review and quotation.
