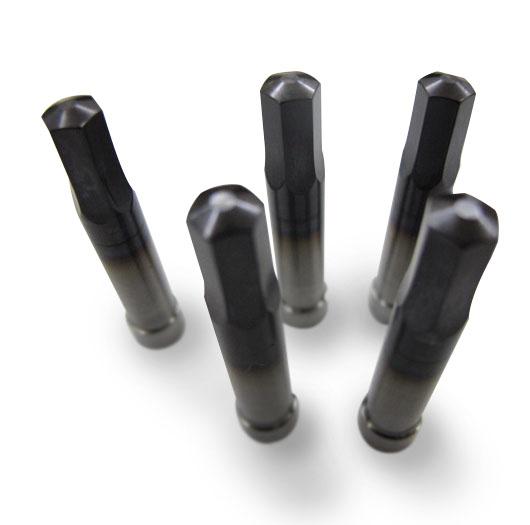

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies custom former hexagon punches for fastener production. Working profiles, dimensions and mounting details follow approved drawings and forming station requirements.
Definition and Function
A former hexagon punch is a tool used in a forming machine to produce a specified hexagonal feature in a metal workpiece.
Its function depends on the working-end design and mating tooling. The drawing must identify whether the operation forms an internal hexagonal recess or another hexagonal feature.
Key specifications include the across-flats dimension, corner radii, working length and profile orientation.
Materials and Surface Treatments
| Item | Available Options |
|---|---|
| Materials | SKH-9, M2, SKH-55, M42, SKH-59 and ASP-30 |
| Surface treatments | Uncoated, TiN, TiAlN or customized treatment |
| Custom specifications | Subject to drawing and application review |
Material and coating selection should consider forming load, workpiece material, lubrication and wear conditions.
Ordering Information
Please provide:
-
Punch drawing with hexagon dimensions, tolerances and corner radii.
-
Working length, overall length and shank diameter.
-
Mounting details and required hexagon orientation.
-
Machine model, forming station and mating die information.
-
Workpiece drawing, material and hardness.
-
Required punch material, coating and quantity.
Minimum order quantity: 10 pieces.
Reference lead time: 20-25 working days after order confirmation, subject to quotation.
Packaging: Plastic bags.
FAQ
1. Can former hexagon punches be customized?
Yes. Submit detailed drawings for specification review and quotation.
2. What does “across flats” mean?
It is the distance between two opposite parallel faces of the hexagon. Specify this dimension and its tolerance on the drawing.
3. Are all hexagon punches interchangeable?
No. Profile dimensions, corner radii, working length, mounting details and orientation must match the application.
4. Which material should I choose?
Selection depends on forming load, workpiece properties and the required balance of toughness and wear resistance.
5. Are coated punches available?
Yes. Options include TiN, TiAlN and customized treatments, subject to application review.
6. What is needed for a replacement order?
Provide the existing punch drawing, machine details and quantity. Include mating tooling dimensions and any wear or breakage issues.
Request a Quote
Send your hexagon punch drawing, workpiece specifications and required quantity to GXP for review and quotation.
