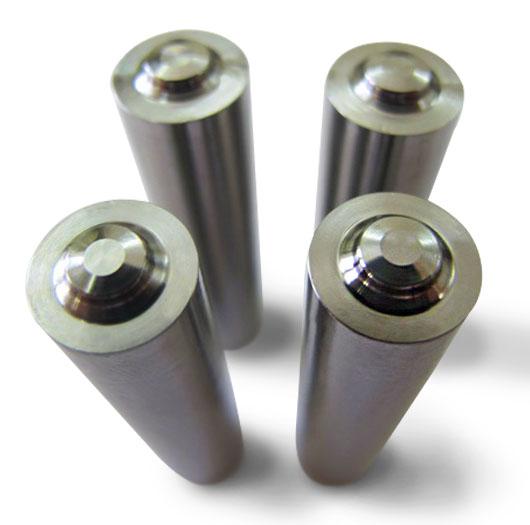

Nut Former Punches
GXP Click here
Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies custom nut former punches for nut production. Working profiles, mounting dimensions and tolerances follow approved drawings and machine station requirements.
Definition and Function
A nut former punch is a tool used at a specific station in a nut forming machine. It works with the mating die to shape a nut blank or perform a defined production operation.
Depending on the tool design, functions include:
-
Forming: Shape the blank and produce specified features.
-
Piercing: Remove material to create the central opening.
-
Knockout: Eject the workpiece from the die.
Each punch is selected for its station and forming sequence.
Materials and Surface Treatments
| Item | Available Options |
|---|---|
| Materials | SKH-9, M2, SKH-55, M42, SKH-59 and ASP-30 |
| Surface treatments | Uncoated, TiN, TiAlN or customized treatment |
| Custom specifications | Subject to drawing and application review |
Material and coating selection should consider the workpiece material, operating load, lubrication and wear conditions.
Ordering Information
Please provide:
-
Punch drawing with dimensions, tolerances and working profile.
-
Overall length, shank diameter and mounting details.
-
Nut former model, station number and operation.
-
Nut drawing, workpiece material and hardness.
-
Mating die dimensions and clearance requirements, where applicable.
-
Required punch material, coating and quantity.
Minimum order quantity: 10 pieces.
Reference lead time: 20-25 working days after order confirmation, subject to specification review.
Packaging: Plastic bags.
FAQ
1. Can nut former punches be customized?
Yes. Submit detailed drawings for specification review and quotation.
2. What is the difference between forming and piercing punches?
Forming punches reshape the blank. Piercing punches remove material to create an opening.
3. Does a nut former punch produce the internal thread?
Nut forming and piercing punches generally prepare the blank and hole. Internal threading is typically completed in a separate tapping operation.
4. Are punches interchangeable between stations?
Compatibility depends on the working profile, mounting dimensions and station function. Confirm these details before ordering.
5. Which material and coating should I choose?
Provide production conditions and existing tool performance for application review.
6. What is needed for a replacement order?
Provide the current punch drawing, machine model, station number and quantity. Include any wear, chipping or breakage issues.
Request a Quote
Send your punch and nut drawings, machine specifications and required quantity to GXP for review and quotation.
