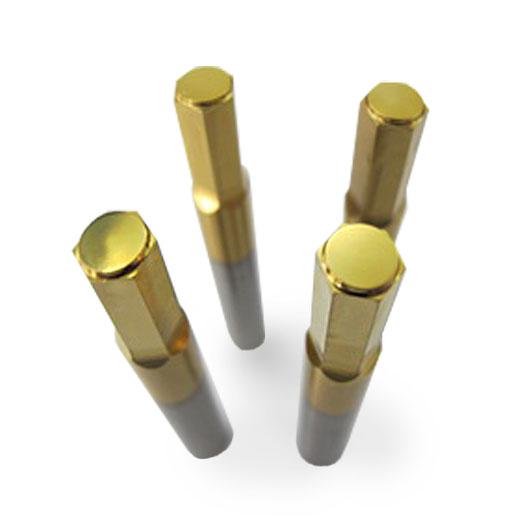

Hexagon Washer Head Recess Pin Punch

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision Hexagon Washer Head Recess Pin Punches for screw head and drive recess forming.

These punches are used in cold heading tools to form drive recesses in hexagon washer head screws, supporting accurate recess dimensions and consistent production quality.

JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.

Standard and customized designs can be reviewed according to screw specifications, tooling requirements and customer drawings.

Hexagon Washer Head Recess Pin Punch for Screw Head Forming

What is a Hexagon Washer Head Recess Pin Punch?

A Hexagon Washer Head Recess Pin Punch is a precision forming tool used to create the drive recess in a hexagon washer head screw during cold heading.

The screw features a hexagonal head with an integrated washer-shaped flange. The recess pin forms the internal drive profile, while the surrounding heading tooling forms the screw head.

Main Functions:

  • Forms accurate screw drive recess profiles.

  • Maintains consistent recess dimensions.

  • Supports stable hexagon washer head screw production.

  • Fits compatible header punch assemblies.

  • Supports custom recess designs for special screw applications.

Materials & Surface Treatment

Material selection depends on screw material, recess geometry and production conditions.

Item

Available Options

Carbon Steel

M2 / SKH-9

Stainless Steel

M42 / SKH-59

Surface Treatment

Plain, TiN or TiAlN, subject to confirmation

Custom Design

According to customer drawings

Final material and coating specifications are subject to JD's technical review.

Applications & Specifications

Item

Description

Application

Hexagon washer head screw manufacturing

Screw Head Type

Hexagon head with integrated washer flange

Recess Profile

Phillips, combination or custom profile

Production Process

Cold heading

Compatible Tooling

Header punch assemblies

Screw Standards

ISO, JIS, ANSI, DIN or customer drawings, where applicable

Dimensions

According to screw specifications and drawings

Customization

Available upon technical review

Ordering Information

Please provide the following information when requesting a quotation:

  1. Screw Standard: ISO, JIS, ANSI, DIN or customer drawing.

  2. Screw Size: Diameter, length and head dimensions.

  3. Recess Type: Phillips, combination or custom recess profile.

  4. Pin Dimensions: Diameter, overall length and required tolerances.

  5. Material & Coating: Required tool steel and surface treatment.

  6. Header Punch Assembly: Applicable punch case or assembly dimensions.

  7. Order Quantity: Required quantity for quotation.

Customer drawings or physical samples are recommended to confirm recess geometry and tooling compatibility.

Frequently Asked Questions

What is a Hexagon Washer Head Recess Pin Punch?

It is a precision tool used to form the drive recess in hexagon washer head screws during cold heading.

What is the difference between a Recess Pin Punch and a Header Punch?

A recess pin punch forms the internal drive recess. A header punch assembly forms the screw head and recess using compatible forming components.

Who manufactures these recess pin punches?

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

What materials are available?

M2 (SKH-9) and M42 (SKH-59) high-speed steel options can be reviewed according to screw material and production requirements.

Are custom recess profiles available?

Yes. Custom recess profiles and pin dimensions can be reviewed based on customer drawings or samples.

Are surface coatings available?

Plain, TiN and TiAlN options can be reviewed according to forming conditions and JD's technical confirmation.

Can these punches be used for stainless steel screws?

Applications involving stainless steel screws can be reviewed based on the screw material grade, forming conditions and tool specifications.

What information is required for ordering?

Please provide screw dimensions, head style, recess profile, pin dimensions, material requirements and order quantity.

Request a Quote – JD Hexagon Washer Head Recess Pin Punch

Looking for precision recess pin punches for hexagon washer head screw manufacturing?

GXP supplies JD-manufactured recess pin punches from Taiwan, including standard and custom designs for cold heading applications.

Send us your drawings, pin dimensions and required quantity for technical review and quotation.
