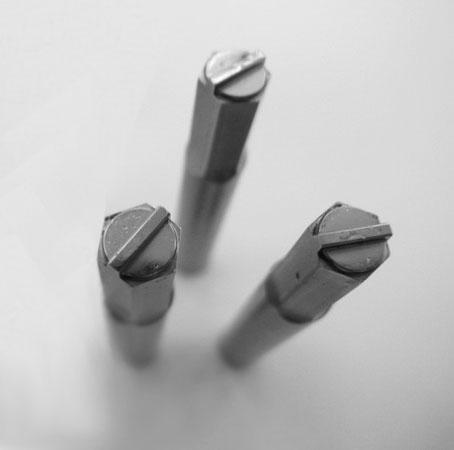

Slotted Hexagon Washer Head Pin Punch

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision Slotted Hexagon Washer Head Pin Punches for screw head and slot forming.

These punches are designed for producing slotted drive profiles in hexagon washer head screws during cold heading, supporting accurate slot dimensions and consistent forming quality.

JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.

Standard and customized designs can be reviewed according to screw specifications, tooling requirements and customer drawings.

Slotted Hexagon Washer Head Pin Punch for Screw Forming

What is a Slotted Hexagon Washer Head Pin Punch?

A Slotted Hexagon Washer Head Pin Punch is a precision forming tool designed to create a straight-slot drive profile in hexagon washer head screws.

The screw features a hexagonal head with an integrated washer flange and a slotted drive for screwdriver engagement.

Main Functions:

  • Forms precise straight-slot drive profiles.

  • Maintains consistent slot width and depth.

  • Supports stable screw head production.

  • Fits compatible header punch assemblies.

  • Supports customized slot dimensions and punch designs.

Materials & Surface Treatment

Material selection depends on screw material, slot geometry and production conditions.

Item

Available Options

Carbon Steel

M2 / SKH-9

Stainless Steel

M42 / SKH-59

Surface Treatment

Plain, TiN or TiAlN, subject to confirmation

Custom Design

According to customer drawings

Final material and coating specifications are subject to JD's technical review.

Applications & Specifications

Item

Description

Application

Hexagon washer head screw manufacturing

Screw Head Type

Hexagon head with integrated washer flange

Drive Profile

Straight slot / Slotted recess

Production Process

Cold heading, where applicable

Compatible Tooling

Header punch assemblies

Screw Standards

ISO, JIS, ANSI, DIN or customer drawings, where applicable

Dimensions

According to screw and punch specifications

Customization

Available upon technical review

Note: Depending on screw design and production equipment, slot forming may require a secondary slotting operation.

Ordering Information

Please provide the following information when requesting a quotation:

  1. Screw Standard: ISO, JIS, ANSI, DIN or customer drawing.

  2. Screw Size: Diameter, length and head dimensions.

  3. Slot Specifications: Slot width, depth and length.

  4. Pin Dimensions: Diameter, overall length and required tolerances.

  5. Material & Coating: Required tool steel and surface treatment.

  6. Header Punch Assembly: Applicable punch case or assembly dimensions.

  7. Order Quantity: Required quantity for quotation.

Customer drawings or physical samples are recommended to confirm slot geometry and tooling compatibility.

Frequently Asked Questions

What is a Slotted Hexagon Washer Head Pin Punch?

It is a precision forming tool designed to produce straight-slot drive profiles in hexagon washer head screws.

What is the function of this pin punch?

It forms the required slot geometry and helps maintain consistent dimensions during screw production.

Who manufactures these pin punches?

JD designs and manufactures them in Taiwan. GXP handles sales, specification coordination and quotations.

What materials are available?

M2 (SKH-9) and M42 (SKH-59) high-speed steel options can be reviewed according to screw material and forming conditions.

Are custom slot dimensions available?

Yes. Custom slot widths, depths and pin dimensions can be reviewed based on customer drawings or samples.

Are surface coatings available?

Plain, TiN and TiAlN options can be reviewed according to production requirements and JD's technical confirmation.

Can the slot be formed during cold heading?

Depending on the screw design and machine configuration, slot forming may be performed during heading or require a secondary slotting process.

What information is required for ordering?

Please provide screw dimensions, slot specifications, pin dimensions, material requirements, machine details and order quantity.

Request a Quote – JD Slotted Hexagon Washer Head Pin Punch

Looking for precision pin punches for slotted hexagon washer head screw manufacturing?

GXP supplies JD-manufactured pin punches from Taiwan, including standard and custom designs for screw forming applications.

Send us your drawings, slot specifications, pin dimensions and required quantity for technical review and quotation.
