Oblong Solid Type Trimming Die TiCN Coated

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies solid type trimming dies for custom fastener head production.

This one-piece tool trims excess material from a preformed head to produce the required oblong external profile. Cutting dimensions, mounting details and TiCN coating requirements are confirmed according to the approved drawing and quotation.

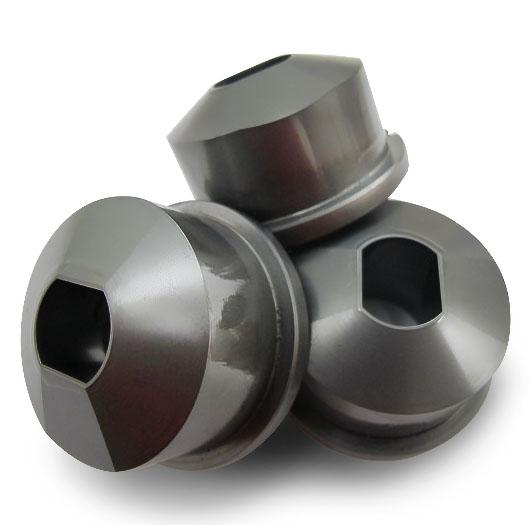

Oblong Solid Type Trimming Die - TiCN Coated

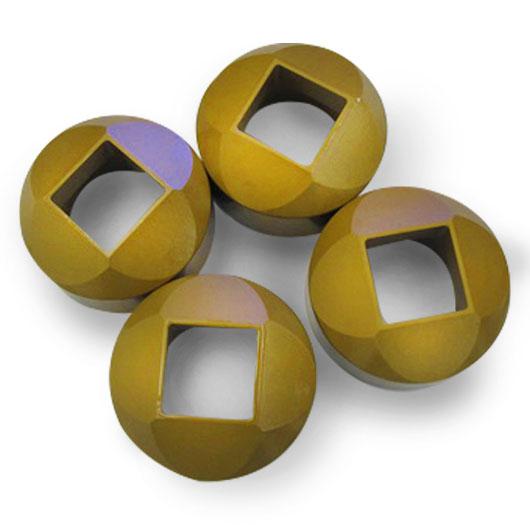

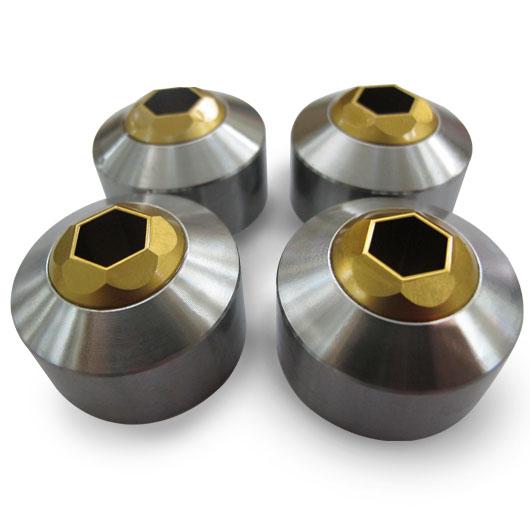

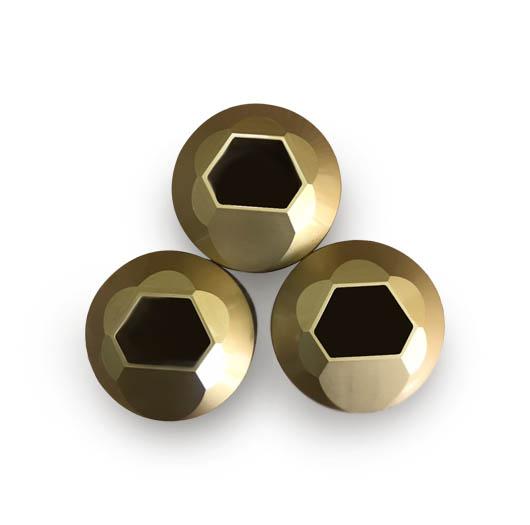

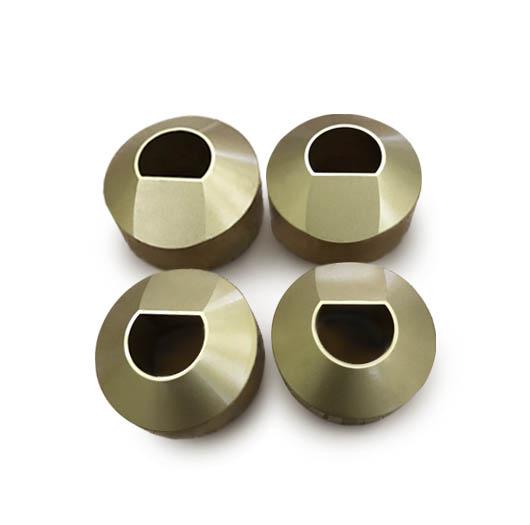

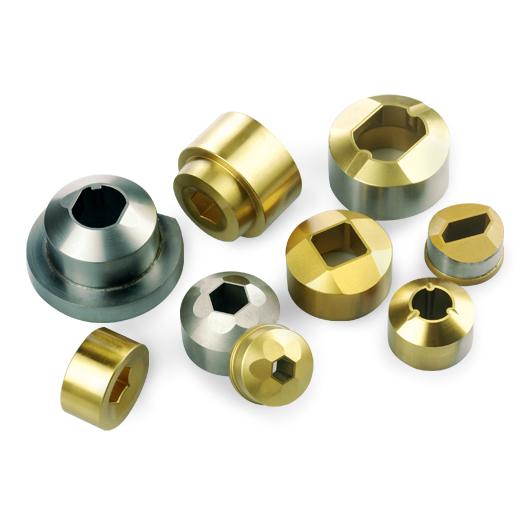

An oblong solid type trimming die is a one-piece cutting tool used after head forming to produce a specified elongated head profile.

Main functions:

  • Remove excess material around the preformed head.

  • Produce the required head length, width and end profile.

  • Maintain consistent external head dimensions.

The drawing should define the complete oblong contour, including straight sections, end radii and tolerances.

Materials and Specifications

Item Specification
Material options SKH-9, M2, SKH-55
Featured construction Solid one-piece
Requested coating TiCN — Titanium Carbonitride; subject to quotation confirmation
Cutting profile Oblong profile according to approved drawing
Die dimensions Custom outside dimensions, overall length and mounting details
Minimum order quantity 5–10 pieces; confirmed with quotation
Packing Standard carton

TiCN is a hard coating used to improve surface wear resistance. Its suitability should be reviewed against the workpiece material and trimming conditions. Tool life also depends on alignment, lubrication, cutting load and maintenance.

Ordering Information

Please provide the following details for quotation:

  1. Die drawing: Outside diameter or dimensions, overall height or length, mounting details and tolerances.

  2. Finished head drawing: Profile length, width, head height, end radii and dimensional tolerances.

  3. Workpiece information: Material grade, hardness and head dimensions before trimming.

  4. Machine information: Manufacturer, model and trimming station requirements.

  5. Tool requirements: Preferred material grade and TiCN coating specification.

  6. Order requirements: Quantity and requested delivery date.

Existing die and fastener samples may also be provided for review.

FAQ

What is an oblong solid type trimming die used for?
It trims excess material from a preformed fastener head to produce the elongated external profile specified on the drawing.

What does “solid type” mean?
The die has a one-piece construction. An inserted type uses a separate working insert assembled into a supporting body.

What is the purpose of TiCN coating?
TiCN coating helps improve surface wear resistance. The coating specification should be confirmed for the intended application.

Which materials are available?
Listed material options include SKH-9, M2 and SKH-55. Selection depends on the workpiece and trimming conditions.

Can the oblong profile be customized?
Yes. Please provide the required profile length, width, end radii, head height and tolerances.

What information is needed for a quotation?
Please provide die and fastener drawings, workpiece material, machine details, TiCN coating requirements and quantity.

What is the minimum order quantity?
The listed minimum order quantity is 5–10 pieces. The applicable quantity, coating availability and lead time will be confirmed during quotation.

Request a Quotation

Send your oblong head drawing, die dimensions, workpiece material and TiCN coating requirements to GXP for specification review and quotation.
