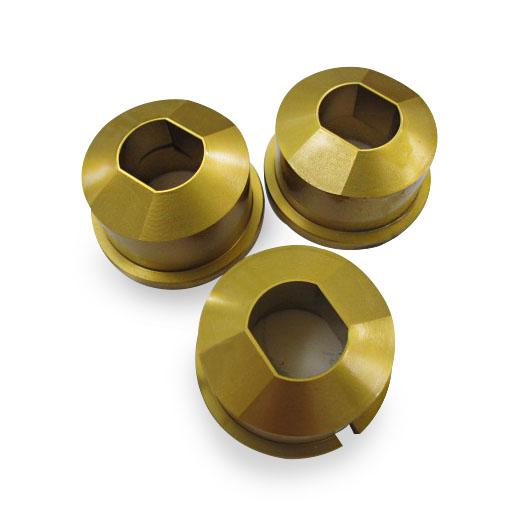

Oblong Solid Type Trimming Die - TiN Coated
GXP Click here
Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies solid type trimming dies with TiN coating for custom fastener head trimming.
The one-piece die trims excess material from a preformed head to produce the specified oblong external profile. Cutting dimensions, end radii and mounting details are reviewed according to customer drawings.

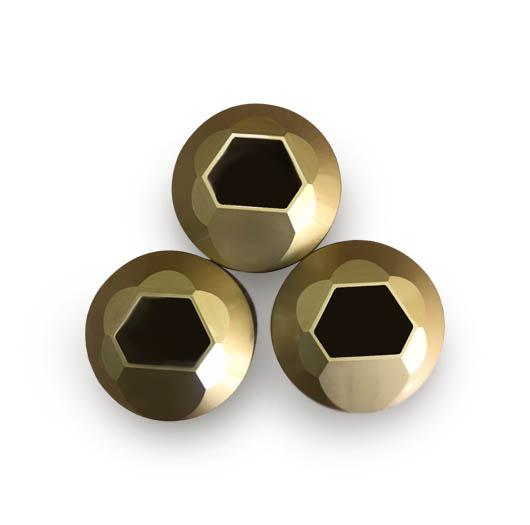

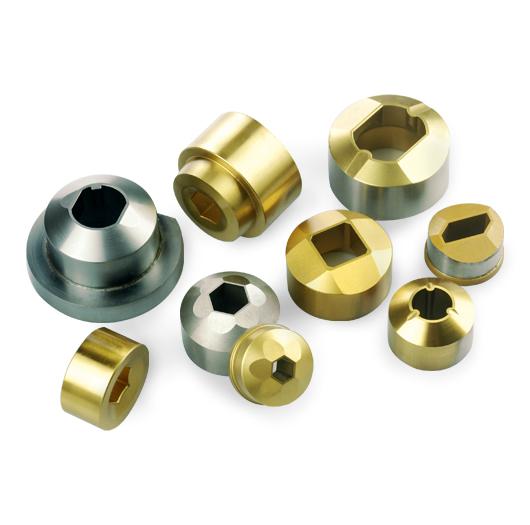

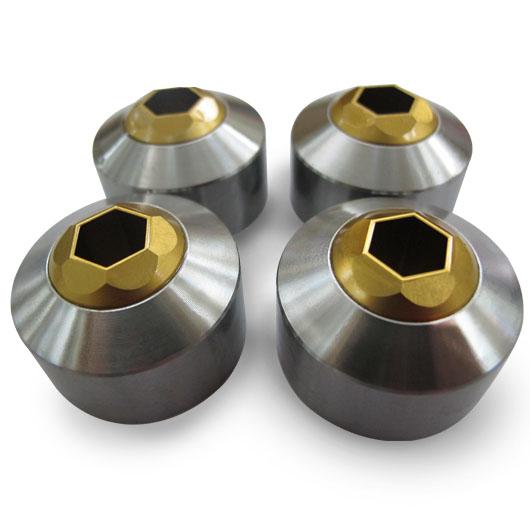

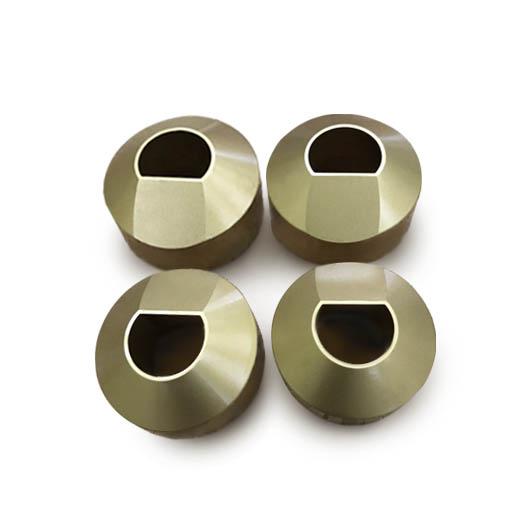

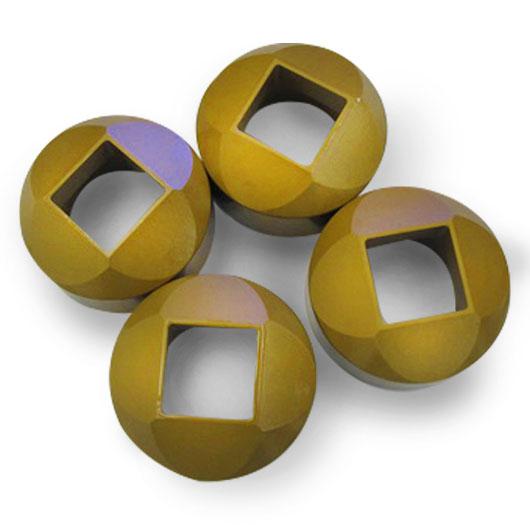

Oblong Solid Type Trimming Die
An oblong solid type trimming die is a one-piece cutting tool used to trim a preformed fastener head into a specified elongated profile.
Main functions:
-
Remove excess material around the preformed head.
-
Produce the required head length, width and end profile.
-
Maintain consistent external head dimensions during production.
The exact oblong geometry, including straight sections and end radii, must be defined on the drawing.
Materials and Specifications
| Item | Specification |
|---|---|
| Listed material options | SKH-9, M2, SKH-55 |
| Featured construction | Solid one-piece |
| Featured coating | TiN — Titanium Nitride |
| Alternative surface options | Plain (uncoated), TiAlN |
| Cutting profile | Custom oblong profile to approved drawing |
| Dimensions and tolerances | According to approved drawings |
| Minimum order quantity | 5–10 pieces; confirmed with quotation |
| Packing | Standard carton |
SKH-59 is also mentioned in the source description; availability should be confirmed during quotation.
TiN coating is intended to improve surface wear resistance. Material and coating selection should match the workpiece and trimming conditions. Tool life depends on alignment, lubrication, cutting load and maintenance.
Ordering Information
Please provide the following details for quotation:
-
Die drawing: Outside dimensions, overall length, mounting details and tolerances.
-
Head profile: Finished head length, width, end radii, head height and tolerances.
-
Workpiece details: Material grade, hardness and head dimensions before trimming.
-
Machine information: Manufacturer, model and trimming station requirements.
-
Tool specification: Required material grade and TiN coating.
-
Order requirements: Quantity and requested delivery date.
Drawings or samples of the existing die and finished fastener are recommended for review.
FAQ
What is an oblong trimming die used for?
It trims excess material from a preformed fastener head to produce an elongated external profile defined by the customer drawing.
What does “solid type” mean?
It means the die has a one-piece construction, rather than a separate working insert assembled into an outer body.
What is the purpose of TiN coating?
TiN coating helps improve surface wear resistance. Its suitability depends on the workpiece material and production conditions.
Which materials are available?
Listed materials include SKH-9, M2 and SKH-55. SKH-59 requirements can also be submitted for review.
Can the oblong profile be customized?
Yes. Please specify the head length, width, end radii, head height and tolerances on the drawing.
What information is needed for a quotation?
Please provide die and fastener drawings, workpiece material, machine details, coating requirements and order quantity.
What is the minimum order quantity?
The listed minimum order quantity is 5–10 pieces. The applicable quantity and lead time will be confirmed after specification review.
Request a Quotation
Send your oblong head drawing, die dimensions, workpiece material and required quantity to GXP for specification review and quotation.
