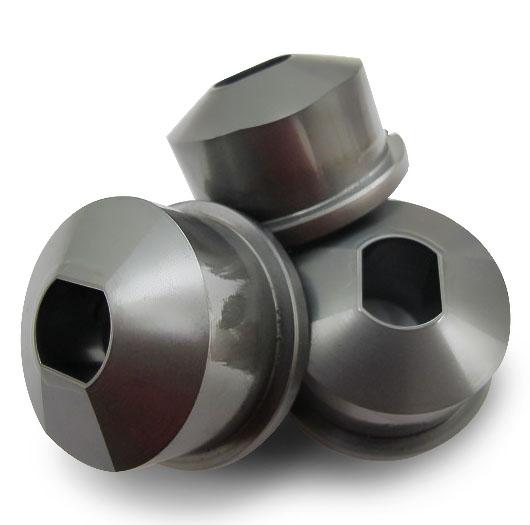

Hexagon Head Trimming Die

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies hexagon head trimming dies for screw and bolt production. These tools trim excess material from preformed heads to produce the required external hexagon profile.

Solid and inserted designs are available according to customer drawings, machine dimensions and production requirements.

Hexagon Head Trimming Die

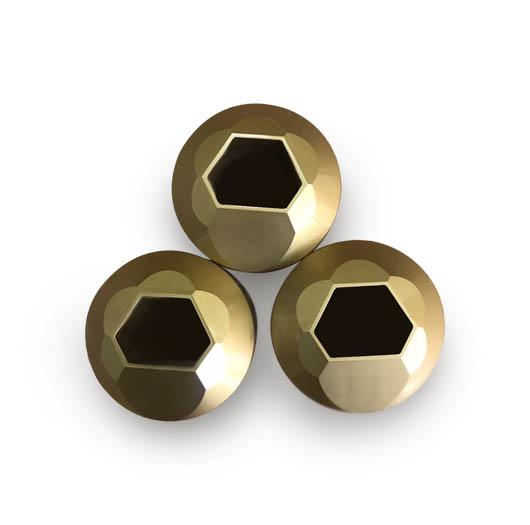

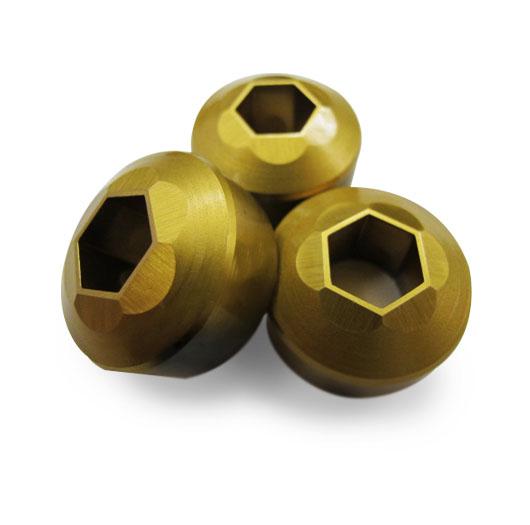

A hexagon head trimming die is a cutting tool used after head forming to trim the outside of a screw or bolt head into a six-sided profile.

Its main functions are to:

  • Remove excess material around the preformed head.

  • Produce the specified hexagon profile and across-flats dimension.

  • Maintain consistent head dimensions for wrench engagement.

Materials and Surface Treatments

Item Available Options
Die material SKH-9, M2, SKH-55
Surface treatment Plain (uncoated), TiN, TiAlN

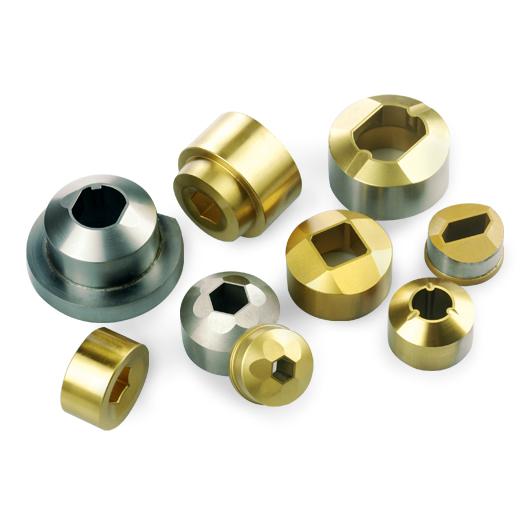

Construction Solid one-piece or two-piece inserted type

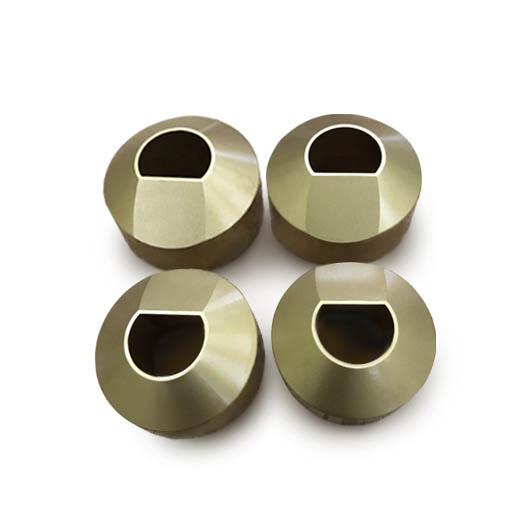

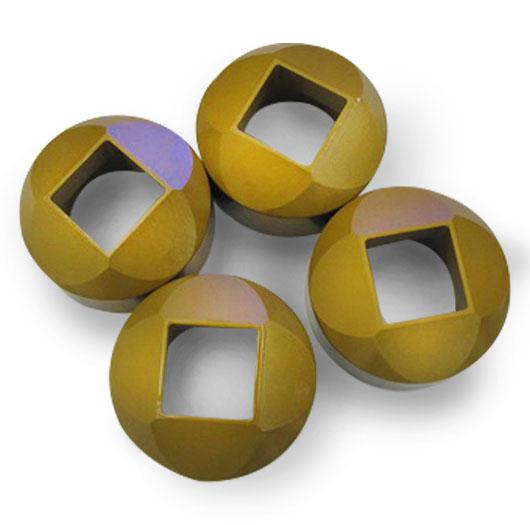

Head profile Hexagon; square and custom profiles upon request
Dimensions According to approved drawings
Minimum order quantity 5–10 pieces; subject to specification

Material and coating selection should consider the workpiece material, trimming load and wear conditions. Coatings may help reduce wear, while actual tool life depends on the application and machine setup.

Ordering Information

Please provide the following details for specification review and quotation:

  1. Tool drawing: Outside diameter, overall length, mounting dimensions and tolerances.

  2. Finished head drawing: Across-flats dimension, head height, corner details and required tolerances.

  3. Workpiece information: Material grade, hardness and head dimensions before trimming.

  4. Machine information: Manufacturer, model and trimming station details.

  5. Tool requirements: Solid or inserted construction, material and surface treatment.

  6. Order quantity: Required quantity and delivery schedule.

Drawings or samples of the existing die and finished fastener are recommended for review.

FAQ

What is a hexagon head trimming die used for?
It removes excess material from a preformed screw or bolt head to produce the required external hexagon shape.

How does it differ from a heading die?
A heading die supports and shapes the blank during forming. A trimming die cuts the outside of the preformed head to its final profile.

Which materials are available?
Listed materials include SKH-9, M2 and SKH-55. The appropriate grade is selected according to the workpiece and production conditions.

What surface treatments are available?
Plain, TiN and TiAlN options are available. Selection depends on the trimming application and wear requirements.

What is the difference between solid and inserted types?
A solid die has a one-piece construction. An inserted die uses a separate working insert assembled into a supporting body. The

Can the die be made to a custom drawing?
Yes. Please provide the required head profile, die dimensions, tolerances and machine information for review.

What is the minimum order quantity?
The listed minimum order quantity is 5–10 pieces. The applicable quantity and lead time will be confirmed with the quotation.

Request a Quotation

Send your die drawing, fastener drawing, workpiece material and required quantity to GXP for specification review and quotation.
