Trimming Die With Inserted Type

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies inserted type trimming dies for screw and bolt production. Each die combines a working insert with a supporting outer body to trim preformed heads into hexagon, square or custom profiles.

Die dimensions and cutting profiles are made according to approved drawings and machine requirements.

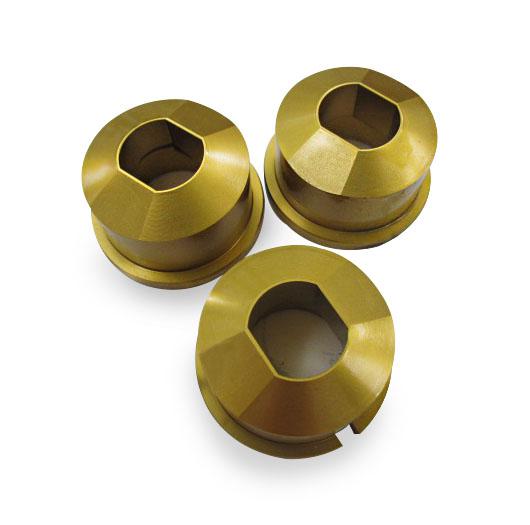

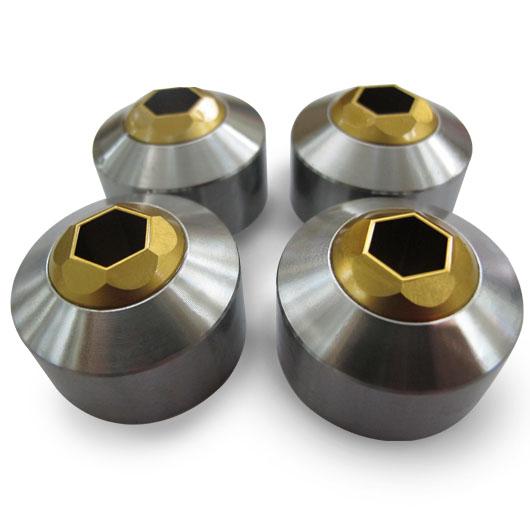

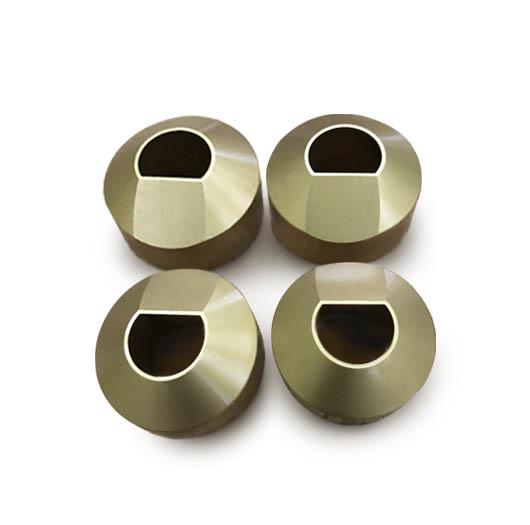

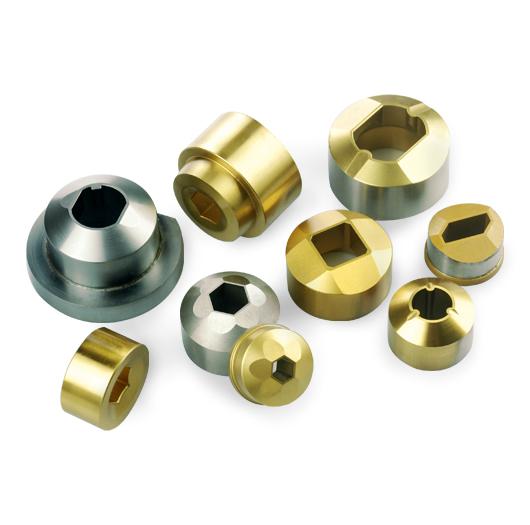

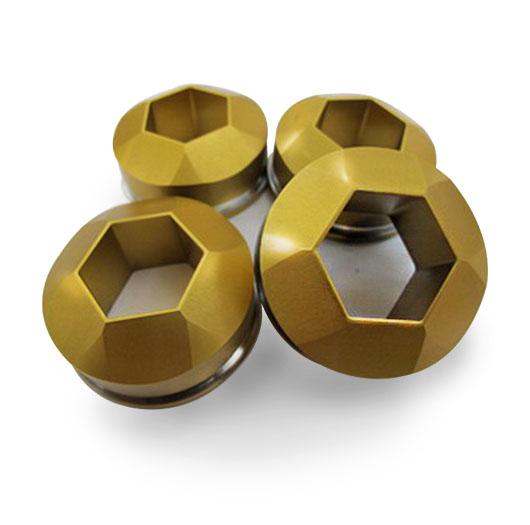

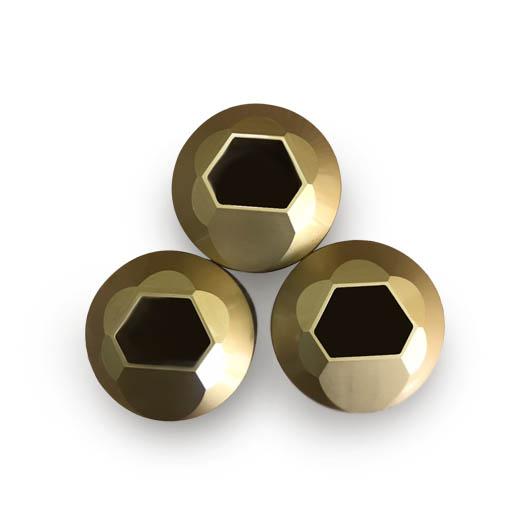

Trimming Die With Inserted Type

An inserted type trimming die is a two-piece cutting tool consisting of a working insert assembled into an outer body. The insert provides the cutting profile, while the outer body supports it during trimming.

Main functions:

  • Remove excess material from preformed screw or bolt heads.

  • Produce the specified external head profile and across-flats dimension.

  • Maintain consistent head dimensions for wrench engagement.

Materials and Specifications

Item Available Options
Listed material options SKH-9, M2, SKH-55
Additional material inquiry SKH-59; subject to confirmation
Surface treatment Plain (uncoated), TiN, TiAlN
Featured construction Two-piece inserted type
Head profile Hexagon, square or custom
Dimensions and tolerances According to approved drawings
Minimum order quantity 5–10 pieces; confirmed with quotation
Packing Standard carton

Material and surface treatment should be selected according to workpiece material, hardness and trimming conditions. Please specify the required insert and outer-body materials on the drawing, if applicable.

Ordering Information

Please provide the following details for quotation:

  1. Assembly drawing: Die outside diameter, overall length, mounting dimensions and tolerances.

  2. Insert details: Insert dimensions, cutting profile and assembly requirements.

  3. Fastener drawing: Head shape, across-flats dimension, head height and tolerances.

  4. Workpiece information: Material grade, hardness and head dimensions before trimming.

  5. Machine information: Manufacturer, model and trimming station details.

  6. Material and surface treatment: Preferred grade and coating.

  7. Order requirements: Quantity, complete assembly or insert-only inquiry, and requested delivery date.

Existing die and fastener samples may also be provided for specification review.

FAQ

What is an inserted type trimming die?
It is a trimming tool with a separate working insert assembled into a supporting outer body.

What is it used for?
It trims excess material from preformed screw or bolt heads to produce hexagon, square or custom external profiles.

How does it differ from a solid trimming die?
A solid die has a one-piece construction. An inserted die uses separate working and supporting components.

Which materials and surface treatments are available?
Listed materials include SKH-9, M2 and SKH-55. Plain, TiN and TiAlN surface options are available. SKH-59 requirements can be reviewed during quotation.

Can the insert be ordered separately?
Please provide the existing assembly and insert drawings for review. Insert-only supply and replacement suitability depend on Can the die be customized?
Yes. Custom head profiles, dimensions and tolerances can be reviewed according to detailed drawings and machine requirements.

What is the minimum order quantity?
The listed minimum order quantity is 5–10 pieces. The applicable quantity, price and lead time will be confirmed after specification review.

Request a Quotation

Send your die assembly drawing, fastener specifications and required quantity to GXP for review and quotation.
