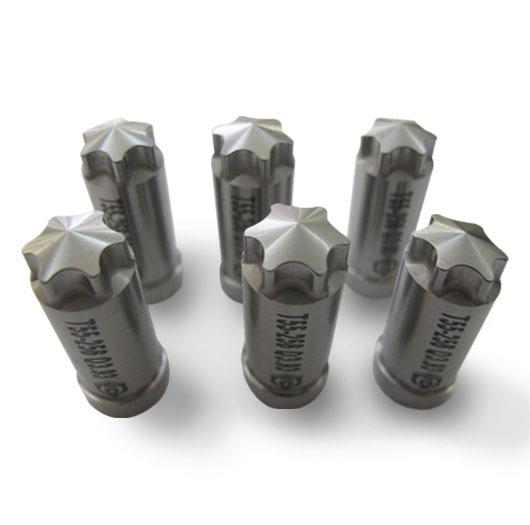

6 Lobe Pin Punch T55 Q=3.93

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision 6 Lobe Pin Punches T55 Q=3.93 for screw head and drive recess forming.

These punches are designed to form T55 six-lobe drive recesses during cold heading, supporting accurate recess geometry, consistent dimensions and stable screw production.

JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.

Standard and customized designs can be reviewed according to screw specifications, tooling requirements and customer drawings.

6 Lobe Pin Punch T55 Q=3.93 for Screw Recess Forming

What is a 6 Lobe Pin Punch T55 Q=3.93?

A 6 Lobe Pin Punch T55 Q=3.93 is a precision forming tool used to create T55 six-lobe drive recesses in screw heads during cold heading.

The Q=3.93 designation refers to a specified punch or recess dimension that should be verified against the original technical drawing.

Main Functions:

  • Forms accurate T55 six-lobe recess profiles.

  • Maintains consistent recess dimensions and depth.

  • Supports stable screw head forming.

  • Fits compatible header punch assemblies.

  • Supports customized pin dimensions and recess profiles.

Materials & Surface Treatment

Material selection depends on screw material, recess geometry and production conditions.

Item

Available Options

Carbon Steel

M2 / SKH-9

Stainless Steel

M42 / SKH-59

Surface Treatment

Plain, TiN or TiAlN, subject to confirmation

Custom Design

According to customer drawings

Final material and coating specifications are subject to JD's technical review.

Applications & Specifications

Item

Description

Application

Screw head and recess forming

Recess Profile

Six-Lobe

Recess Size

T55

Q Dimension

3.93 (unit and measurement definition to be confirmed)

Production Process

Cold heading

Compatible Tooling

Header punch assemblies

Screw Standards

Applicable standards or customer drawings

Pin Dimensions

According to screw specifications and drawings

Customization

Available upon technical review

Ordering Information

Please provide the following information when requesting a quotation:

  1. Screw Size: Diameter, length and head type.

  2. Recess Type: T55 Six-Lobe.

  3. Q Dimension: Q=3.93, including measurement definition and tolerance.

  4. Pin Dimensions: Diameter, overall length and required tolerances.

  5. Material & Coating: Required tool steel and surface treatment.

  6. Header Punch Assembly: Applicable punch case or assembly dimensions.

  7. Order Quantity: Required quantity for quotation.

Customer drawings or physical samples are recommended to confirm recess geometry, Q dimension and tooling compatibility.

Frequently Asked Questions

What is a 6 Lobe Pin Punch T55 Q=3.93?

It is a precision forming tool used to produce T55 six-lobe drive recesses in screw heads during cold heading.

What is the function of this pin punch?

It forms accurate six-lobe recess profiles and helps maintain consistent dimensions during screw production.

Who manufactures these pin punches?

JD designs and manufactures them in Taiwan. GXP handles sales, specification coordination and quotations.

What materials are available?

M2 (SKH-9) and M42 (SKH-59) high-speed steel options can be reviewed according to screw material and production requirements.

What does Q=3.93 mean?

Q=3.93 identifies a specified product dimension. Its measurement definition, unit and tolerance should be confirmed against the original technical drawing.

Are custom pin dimensions available?

Yes. Custom pin dimensions and six-lobe recess geometries can be reviewed based on customer drawings or samples.

Are surface coatings available?

Plain, TiN and TiAlN options can be reviewed according to production requirements and JD's technical confirmation.

What information is required for ordering?

Please provide screw dimensions, T55 recess specifications, Q dimension, pin dimensions, material requirements, tooling details and order quantity.

Request a Quote – JD 6 Lobe Pin Punch T55 Q=3.93

Looking for precision T55 six-lobe pin punches for screw manufacturing?

GXP supplies JD-manufactured recess pin punches from Taiwan, including standard and custom designs for cold heading applications.

Send us your drawings, recess specifications, pin dimensions and required quantity for technical review and quotation.
