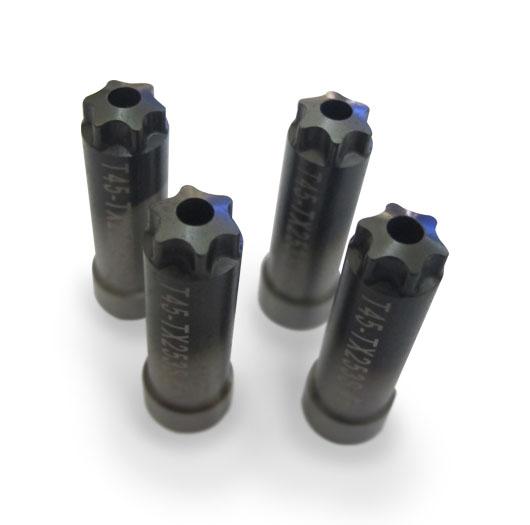

6 Lobe Tamper-Proof Pin Punch T45

GXP Click here

Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision 6 Lobe Tamper-Proof Pin Punches T45 for security screw head and recess forming.

These punches are designed to form T45 six-lobe drive recesses with a central security pin feature during cold heading, supporting accurate recess geometry and consistent production quality.

JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.

Standard and customized designs can be reviewed according to screw specifications, tooling requirements and customer drawings.

6 Lobe Tamper-Proof Pin Punch T45 for Security Screw Forming

What is a 6 Lobe Tamper-Proof Pin Punch T45?

A 6 Lobe Tamper-Proof Pin Punch T45 is a precision forming tool used to create a T45 six-lobe security recess with a central raised pin in screw heads during cold heading.

The central security pin helps prevent removal with standard six-lobe drivers and requires a compatible tamper-resistant screwdriver.

Main Functions:

  • Forms accurate T45 six-lobe security recess profiles.

  • Creates the central security pin feature.

  • Maintains consistent recess dimensions and depth.

  • Supports stable security screw production.

  • Fits compatible header punch assemblies.

  • Supports customized recess and pin dimensions.

Materials & Surface Treatment

Material selection depends on screw material, recess geometry and production conditions.

Item

Available Options

Carbon Steel

M2 / SKH-9

Stainless Steel

M42 / SKH-59

Surface Treatment

Plain, TiN or TiAlN, subject to confirmation

Custom Design

According to customer drawings

Final material and coating specifications are subject to JD's technical review.

Applications & Specifications

Item

Description

Application

Tamper-resistant security screw manufacturing

Drive Profile

Six-Lobe Tamper-Proof

Recess Size

T45

Security Feature

Central raised pin

Production Process

Cold heading

Compatible Tooling

Header punch assemblies

Screw Standards

Applicable standards or customer drawings

Pin Dimensions

According to screw specifications and drawings

Customization

Available upon technical review

Ordering Information

Please provide the following information when requesting a quotation:

  1. Screw Size: Diameter, length and head type.

  2. Recess Type: T45 Six-Lobe Tamper-Proof.

  3. Security Feature: Central pin dimensions and tolerances.

  4. Pin Punch Dimensions: Diameter, overall length and required tolerances.

  5. Material & Coating: Required tool steel and surface treatment.

  6. Header Punch Assembly: Applicable punch case or assembly dimensions.

  7. Order Quantity: Required quantity for quotation.

Customer drawings or physical samples are recommended to confirm security recess geometry and tooling compatibility.

Frequently Asked Questions

What is a 6 Lobe Tamper-Proof Pin Punch T45?

It is a precision forming tool used to produce T45 six-lobe security recesses with a central raised pin in screw heads.

What is the function of this pin punch?

It forms the six-lobe security recess and central pin feature, helping maintain consistent dimensions during screw production.

Who manufactures these pin punches?

JD designs and manufactures the punches in Taiwan. GXP handles sales, specification coordination and quotations.

What materials are available?

M2 (SKH-9) and M42 (SKH-59) high-speed steel options can be reviewed according to screw material and production requirements.

What is the difference between a standard T45 and a Tamper-Proof T45 recess?

A standard T45 recess has a six-lobe drive profile. A Tamper-Proof T45 recess includes a central raised pin that requires a compatible security driver with a center hole.

Are custom pin dimensions available?

Yes. Custom punch dimensions, recess depth and central security pin geometry can be reviewed based on customer drawings or samples.

Are surface coatings available?

Plain, TiN and TiAlN options can be reviewed according to production requirements and JD's technical confirmation.

What information is required for ordering?

Please provide screw dimensions, T45 security recess specifications, punch dimensions, material requirements, tooling details and order quantity.

Request a Quote – JD 6 Lobe Tamper-Proof Pin Punch T45

Looking for precision T45 tamper-proof pin punches for security screw manufacturing?

GXP supplies JD-manufactured recess pin punches from Taiwan, including standard and custom designs for cold heading applications.

Send us your drawings, recess specifications, pin punch dimensions and required quantity for technical review and quotation.
